Celestaphone Five Portable
Celestaphone (Brand), Denison Bros.; Halifax
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Celestaphone (Brand), Denison Bros.; Halifax
- Year
- 1927
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 205239
- Number of Tubes
- 5
- Valves / Tubes
- Main principle
- TRF with regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- from Radiomuseum.org
- Model: Celestaphone Five Portable - Celestaphone Brand, Denison
- Dimensions (WHD)
- 17 x 17 x 10 inch / 432 x 432 x 254 mm
- Notes
-
2-band, 5-valve TRF battery portable receiver.
- Wave range 230-590 and 850-2700 metres.
- HF valve with aperiodic interstage coupling
- HF valve in reflex
- Anode bend detector
- Choke-capacity-coupled LF valve
- Resistance-capacity-coupled LF valve.
- Portable elevated aerial
- Amplion cone loudspeaker.
- Net weight (2.2 lb = 1 kg)
- 33 lb (33 lb 0 oz) / 14.982 kg
- Price in first year of sale
- 35.00 GBP
- Mentioned in

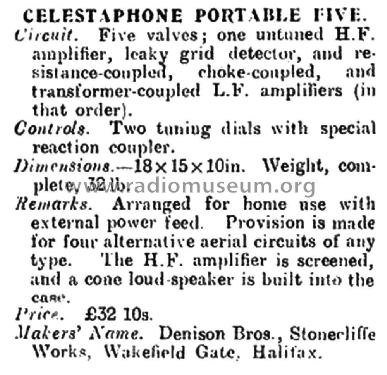

- Wireless World (The), London (WW, 79) (Nov 16, 1927, Page 681.)
- Author
- Model page created by John Koster. See "Data change" for further contributors.
