AM-FM Stereo Tuner ST-3380

AM-FM Stereo Tuner ST-3380; Denon Marke / brand (ID = 1944612) Radio

AM-FM Stereo Tuner ST-3380; Denon Marke / brand (ID = 1944613) Radio

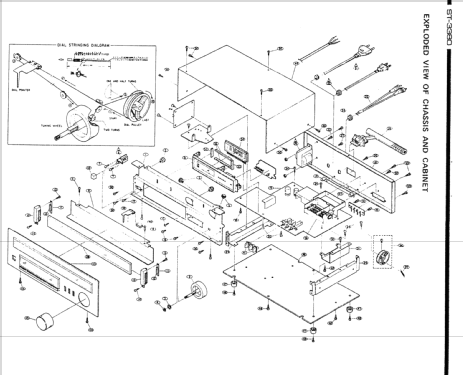

AM-FM Stereo Tuner ST-3380; Denon Marke / brand (ID = 1944614) Radio
AM-FM Stereo Tuner ST-3380; Denon Marke / brand (ID = 1944460) Radio AM-FM Stereo Tuner ST-3380; Denon Marke / brand (ID = 1944450) Radio
AM-FM Stereo Tuner ST-3380; Denon Marke / brand (ID = 1944452) Radio AM-FM Stereo Tuner ST-3380; Denon Marke / brand (ID = 2039946) Radio
AM-FM Stereo Tuner ST-3380; Denon Marke / brand (ID = 2407822) Radio
Use red slider bar for more.
AM-FM Stereo Tuner ST-3380; Denon Marke / brand (ID = 1944460) Radio
Denon Marke / brand: AM-FM Stereo Tuner ST-3380 [Radio] ID = 1944460 1400x1285
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM-FM Stereo Tuner ST-3380, Denon (Marke / brand):
Ebay Auction

Country:  Japan
Manufacturer / Brand:  Denon (Marke / brand)
Year: 1982 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 17:
Main principle Superheterodyne (common); ZF/IF 452,5/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 115 or 120 or 200 or 220 or 230 or 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AM-FM Stereo Tuner ST-3380 - Denon Marke / brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 400 x 143.5 x 261 mm / 15.7 x 5.6 x 10.3 inch
Notes

A solid state stereo hi-fi AM/FM tuner covering MW and VHF. Analogue scale and digital frequency display. Five LED signal strength indicators, FM Stereo LED indicator. Fitted rotatable AM rod aerial, 300Ω and 75Ω connectors for FM aerials and connector for AM aerial. Fitted line out lead with phono plugs.

Specification
FM Section
Tuning Range:                 FM 88 - 108 MHz (Germany FM 87,5 - 108 MHz)
Usable Sensitivity:           1.8µV (IHF), 10.3 dBf (NEW IHF) (MONO)
50dB quieting Sensitivity: 3µV (IHF), 14.8 dBf (NEW IHF) (MONO)
Capture Ratio:                 1.2 dB (IHF)
Signal Selectivity:            65 dB
Image Rejection:              55 dB
I.F. Rejection:                  85 dB
AM Suppression:             55 dB
Frequency Response:      20 Hz - 15 kHz +0.2 dB, -1.5 dB
Harmonic Distortion:        Stereo 0.3% (at 1 kHz, 100% mod.)
                                      Mono 0.15% (at 1 kHz, 100% mod.)
Stereo Separation:           40 dB (at 1 kHz)
Signal to Noise Ratio:      70 dB
Rated Output Voltage:     170 mV (at 30% mod.)

AM Section
Tuning Range:                MW 525 - 1605 kHz
Usable Sensitivity:          300 µV/m
Signal to Noise Ratio:     55 dB
Rated Output Voltage:    170 mV (at 30% mod.)

Semiconductors:
7x IC's, 2x FET'S, 17x Transistors and 18x Diodes

Versions/Power Requirements:
120VAC, 60Hz
115/200/230VAC, 50/60Hz
220VAC, 50Hz
240VAC, 50Hz
Power Consumption 11 Watts

There is also a version with LW, the Denon ST-3380 LW-FM Stereo Tuner.

Net weight (2.2 lb = 1 kg) 4.3 kg / 9 lb 7.5 oz (9.471 lb)
Mentioned in - - Manufacturers Literature (Service manual ST-3380 SA-3380)

Model page created by Franz Scharner. See "Data change" for further contributors.
