AVC-1020

AVC-1020; Denon Marke / brand (ID = 661763) Ampl/Mixer
Use red slider bar for more.
AVC-1020; Denon Marke / brand (ID = 661763) Ampl/Mixer

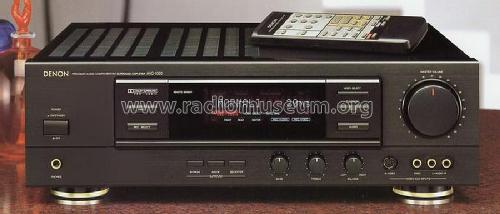

Denon Marke / brand: AVC-1020 [Ampl/Mixer] ID = 661763 900x386
Select picture or schematic to display from thumbnails on the right and click for download.
For model AVC-1020, Denon (Marke / brand):
Prospekt

Country:  Japan
Manufacturer / Brand:  Denon (Marke / brand)
Year: 1990 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out 360 W (unknown quality)
from Radiomuseum.org Model: AVC-1020 - Denon Marke / brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 434 x 140 x 421 mm / 17.1 x 5.5 x 16.6 inch
Notes AV Control Amplifier.
Front 2 x 90W, Center: 90W, Rear: 2 x 45 into 8 ohms.
Wireless Remote Control Denon RC-143.
Black Design.
Net weight (2.2 lb = 1 kg) 11.2 kg / 24 lb 10.7 oz (24.67 lb)
Price in first year of sale 69'800.00 JPY

Model page created by Franz Scharner. See "Data change" for further contributors.
