Stereo Cassette Tape Deck DR-M2

Stereo Cassette Tape Deck DR-M2; Denon Marke / brand (ID = 1464395) R-Player Stereo Cassette Tape Deck DR-M2; Denon Marke / brand (ID = 1464396) R-Player
Stereo Cassette Tape Deck DR-M2; Denon Marke / brand (ID = 1464397) R-Player Stereo Cassette Tape Deck DR-M2; Denon Marke / brand (ID = 1464398) R-Player

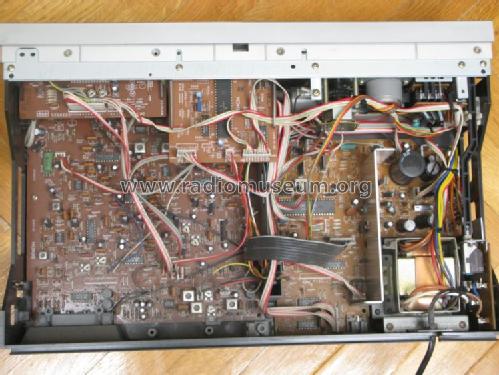

Stereo Cassette Tape Deck DR-M2; Denon Marke / brand (ID = 1464399) R-Player Stereo Cassette Tape Deck DR-M2; Denon Marke / brand (ID = 1468316) R-Player
Stereo Cassette Tape Deck DR-M2; Denon Marke / brand (ID = 1468317) R-Player
Use red slider bar for more.
Stereo Cassette Tape Deck DR-M2; Denon Marke / brand (ID = 1464395) R-Player

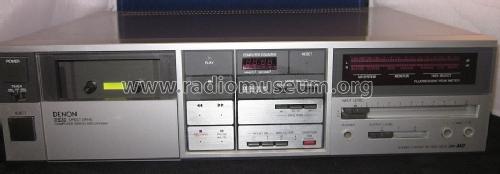

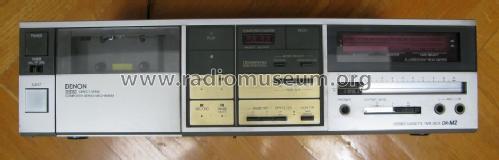

Denon Marke / brand: Stereo Cassette Tape Deck DR-M2 [R-Player] ID = 1464395 930x298
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Cassette Tape Deck DR-M2, Denon (Marke / brand)

Country:  Japan
Manufacturer / Brand:  Denon (Marke / brand)
Year: 1982 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player; Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 100 or 120 or 220 or 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Cassette Tape Deck DR-M2 - Denon Marke / brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 434 x 115 x 286 mm / 17.1 x 4.5 x 11.3 inch
Notes

Vertical tape loading 4 track 2 channel stereo cassette (Philips type) tape deck. SF/Recording/playback combination head. Erase head (ferrite). Motors: FG Servo Direct Drive motor (for capstan) & DC motor (for reel winding). Tape speed 4.8 cm/s - 1-7/8 ips. Fast forward - rewind 90 secs with C-60 cassette. Recording bias 105 kHz. Overall S/N ratio with Dolby C NR on more than 73 dB. Overall frequency response at -20 dB: 20-23000 Hz (Metal tape), 30-20000 Hz (CrO2 tape), 30-19000 Hz (LH tape). Channel separation more than 40 dB (at 1 kHz). Crosstalk more than 65 dB (at 1 kHz). Wow & flutter less than 0.027% w.rms. Inputs microphone (0.35 mV maximum) & line (77.5 mV maximum). Outputs line (775 mv maximum) & headphone (1.2 mW maximum). Optional wired remote control.

Versions/Power Requirements
USA                         / 120V AC 60Hz
Europe                    / 220/240V AC 50Hz
Japan                      / 100V AC 50/60Hz
Multi-voltage model / 120/220/240V AC 50/60Hz with voltage selector

Net weight (2.2 lb = 1 kg) 5.6 kg / 12 lb 5.4 oz (12.335 lb)
Literature/Schematics (1) - - Manufacturers Literature (Service Manual Model DR-M2/M3 Stereo Cassette Tape Deck)
Literature/Schematics (2) -- Original prospect or advert (Denon DR-M4/M3/M2/M1 Stereo Cassette Tape Decks brochure)

Model page created by Rafael Chueca. See "Data change" for further contributors.
