CD Receiver UD-M31

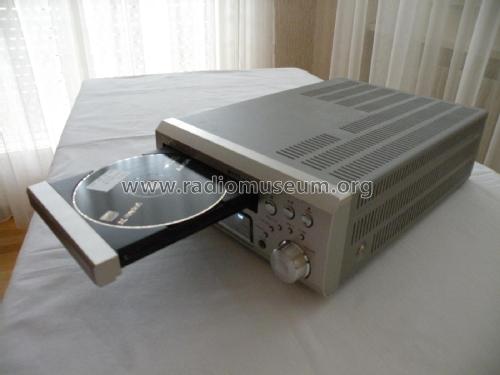

CD Receiver UD-M31; Denon Marke / brand (ID = 2535468) Radio CD Receiver UD-M31; Denon Marke / brand (ID = 2535469) Radio
CD Receiver UD-M31; Denon Marke / brand (ID = 2535470) Radio CD Receiver UD-M31; Denon Marke / brand (ID = 2535471) Radio
Use red slider bar for more.
CD Receiver UD-M31; Denon Marke / brand (ID = 2535468) Radio
Denon Marke / brand: CD Receiver UD-M31 [Radio] ID = 2535468 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model CD Receiver UD-M31, Denon (Marke / brand):
J_Denon_type UD-M31_vue de face_coll. William FAGUE

Country:  Japan
Manufacturer / Brand:  Denon (Marke / brand)
Year: 2003 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 60Hz, 120 or 50Hz, 230 Volt
Loudspeaker - This model requires external speaker(s).
Power out 44 W (max.)
from Radiomuseum.org Model: CD Receiver UD-M31 - Denon Marke / brand
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 210 x 95 x 325 mm / 8.3 x 3.7 x 12.8 inch
Notes

Specifications of the Denon CD Receiver UD-M31

Receiver section
Reception frequency band: FM: 87.50 MHz ~ 108.00 MHz
AM: 520 kHz ~ 1710 kHz
Reception sensitivity: FM: 1.5 μV/75 Ω/ohms
AM: 20 μV
FM stereo separation: 35 dB (1 kHz)
Rated output power: 22 W + 22 W (6 Ω / ohms, 1 kHz, T.H.D. 10%)
Audio input / output jacks: AUX input/output jacks, TAPE PB/REC jacks,
PRE OUT (MONO)
3.5 mm headphones jack

CD player section
Wow & flutter: Below measurable limits (±0.001% W. peak)
Sampling frequency: 44.1 kHz
Optical source: Semiconductor

Clock, Timer section
Clock system: Power source synchronous system
Clock precision (per month): ± 30 seconds
Timer functions: Everyday timer (1 setting)
Once timer (1 setting)
Sleep timer (maximum 60 min.)

General
Power supply: AC 120 V, 60 Hz or 230 V, 50 Hz
Power consumption: 50 W
Remote control unit: RC-933
Remote control system: Infrared pulse system

Made in China.

Net weight (2.2 lb = 1 kg) 4.3 kg / 9 lb 7.5 oz (9.471 lb)
Mentioned in - - Manufacturers Literature (Operating Instructions)

Model page created by William Fague. See "Data change" for further contributors.
