PCM Audio Technology / Compact Disc Player DCD-660

Denon (Marke / brand)

  • Year
  • 1990
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 143989

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120; 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: PCM Audio Technology / Compact Disc Player DCD-660 - Denon Marke / brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 434 x 105 x 280 mm / 17.1 x 4.1 x 11 inch
  • Notes

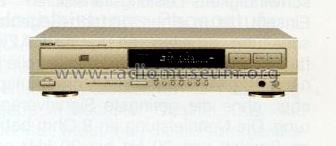

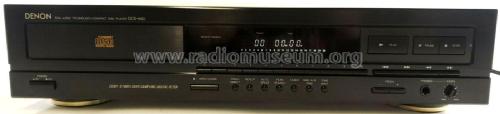

  • A stereo hi-fi compact disc player with remote control (RC-223 Europe, RC-226 USA). 20 bit 8 times oversampling digital filter. Jack for headphones with volume control (5mW). Black or silver cabinet.

    Specification
    Frequency range:                  2Hz - 20kHz
    Dynamic range:                    96dB
    S/N ratio:                             103dB
    Channel separation:              99dB @ 1 kHz
    THD:                                   0.004% at 1kHz
    Analog output:                      2V

    Frequenzgang 2-20000Hz, Dynamikumfang 96 dB; Kopfhörerausgang Klinkenbuchse mit Pegelregler 5 mW; 20 Musiktitel frei programmierbar. Fernsteuerung RC-223.

  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Source of data
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Wartungsanleitung CD Spieler Typ DCD-860/660)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
