• Country
• Japan

• Manufacturer / Brand
• Denon (Marke / brand)

• Year
• 1992/1993

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 164460

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 110-125; 220-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: PCM Audio Technology / Compact Disc Player DCD-980 - Denon Marke / brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 434 x 110 x 280 mm / 17.1 x 4.3 x 11 inch

• Notes

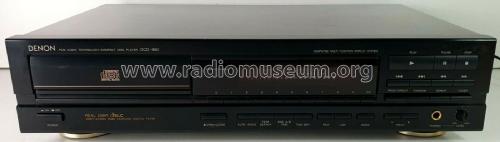

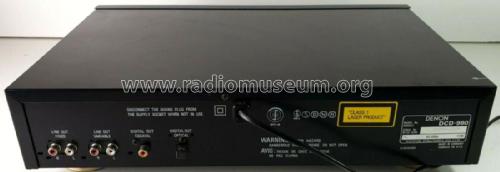

• A stereo hi-fi compact disc player with remote control (RC-235). 20 bit 8 times oversampling digital filter. RCA sockets for fixed and variable analogue output, connectors for coax and optical digital output. Jack for headphones with volume control (10mW).

  Facilities
  Functions:       Direct selection, automatic search,
                         programmed playback, repeat playback,
                         manual search, auto space, time mode,
                         time edit, pitch control, peak search, fader
  Display:          Track number, time, music calendar,
                         and engaged modes

  Specification
  No. of Channels:          2 channels
  Frequency Response:  2 - 20,000 Hz
  Dynamic Range:         99 dB
  Signal-to-Noise Ratio: 110 dB
  Harmonic Distortion:   0.0025% (1 kHz)
  Separation:               103 dB (1 kHz)
  Output (Analog):        FIXED 2.0 V, VARIABLE 0 - 2.0 V
  Output (Digital):         COAXIAL (0.5Vpp 75 ohm)
                                  OPTICAL

  Kopfhörerausgang über Klinkenbuchse mit Pegelregler 10 mW; Cinch Ausgang hinten.
  20 Musiktitel frei programmierbar. Zufällige Titelauswahl. Indexsuche.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)
