Direct Drive Turntable DP-1700

Direct Drive Turntable DP-1700; Denon Marke / brand (ID = 2399694) R-Player Direct Drive Turntable DP-1700; Denon Marke / brand (ID = 2399695) R-Player
Direct Drive Turntable DP-1700; Denon Marke / brand (ID = 2399696) R-Player Direct Drive Turntable DP-1700; Denon Marke / brand (ID = 2399697) R-Player
Direct Drive Turntable DP-1700; Denon Marke / brand (ID = 2399698) R-Player Direct Drive Turntable DP-1700; Denon Marke / brand (ID = 2399699) R-Player
Use red slider bar for more.

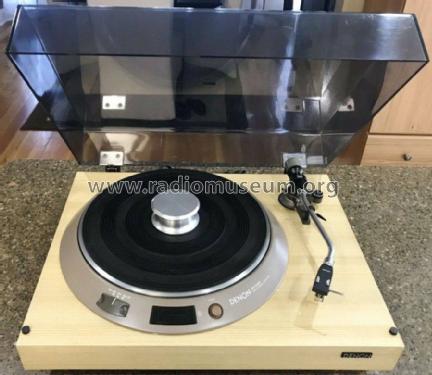

Direct Drive Turntable DP-1700; Denon Marke / brand (ID = 2399694) R-Player
Denon Marke / brand: Direct Drive Turntable DP-1700 [R-Player] ID = 2399694 900x780
Select picture or schematic to display from thumbnails on the right and click for download.
For model Direct Drive Turntable DP-1700, Denon (Marke / brand):
Ebay.com item 273814890364 seller plenny1958

Country:  Japan
Manufacturer / Brand:  Denon (Marke / brand)
Year: 1975 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details Record Player (not changer); Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 120 or 200 or 220 or 230 or 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Direct Drive Turntable DP-1700 - Denon Marke / brand
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 485 x 170 x 405 mm / 19.1 x 6.7 x 15.9 inch
Notes

A 2 speed (33 & 45 rpm) servo controlled direct drive stereo hi-fi turntable complete with tonearm, with built-in strobe.

Specification
Driving system:             Servo controlled direct drive
Speed:                         33⅓ rpm 45 rpm
Speed adjusting range:  More than +3%
Wow and flutter:            Less than 0.03% wrms
S/N:                             More than 73dB (DIN-B)
Turntable platter:           Aluminium diecast, 300 mm in diameter,  1.1 kg
Motor:                          Solid rotor type AC torque motor
Speed control system:   Frequency detection servo system

Tonearm
Type:                           Static balance type
Effective length:            244 mm
Overhang:                    14 mm
Tracking error:              Less than 2.5°
Stylus pressure:           0 to 2.5g
Cartridge weight:          5 to 11g
Head shell connector:   EIA standard 4P connector
Arm lifter:                    Oil damp type

Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Literature/Schematics (1) - - Manufacturers Literature (Operating Instructions DP-1700 DP-1000 servo controlled direct drive turntable)
