AM-FM Stereo Receiver DRA-210

AM-FM Stereo Receiver DRA-210; Denon Marke / brand (ID = 2407169) Radio AM-FM Stereo Receiver DRA-210; Denon Marke / brand (ID = 2400231) Radio
AM-FM Stereo Receiver DRA-210; Denon Marke / brand (ID = 2407170) Radio AM-FM Stereo Receiver DRA-210; Denon Marke / brand (ID = 2400233) Radio
AM-FM Stereo Receiver DRA-210; Denon Marke / brand (ID = 2400234) Radio AM-FM Stereo Receiver DRA-210; Denon Marke / brand (ID = 561280) Radio
Use red slider bar for more.

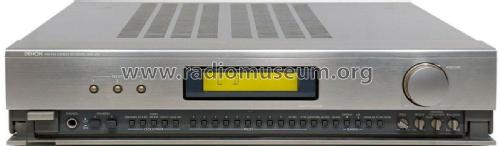

AM-FM Stereo Receiver DRA-210; Denon Marke / brand (ID = 2407169) Radio
Denon Marke / brand: AM-FM Stereo Receiver DRA-210 [Radio] ID = 2407169 1300x380
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM-FM Stereo Receiver DRA-210, Denon (Marke / brand):
Ebay UK auction item 130908794760 seller retro.audio

Country:  Japan
Manufacturer / Brand:  Denon (Marke / brand)
Year: 1993 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast, Long Wave and FM or UHF.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 120 or 220 or 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 100 W (140 W max.)
from Radiomuseum.org Model: AM-FM Stereo Receiver DRA-210 - Denon Marke / brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 434 x 92 x 404 mm / 17.1 x 3.6 x 15.9 inch
Notes

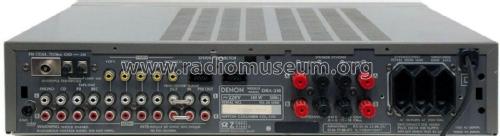

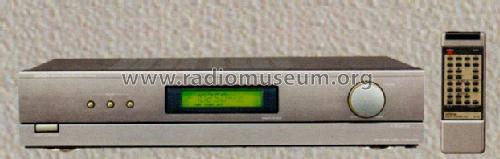

A stereo hi-fi receiver with a 2 x 50 watt (into 8 ohms) amplifier and an AM/FM tuner housed in a champagne gold metal case with remote control (RC-130). Sockets for Phono and CD input, DAT/Tape input/output, two VDP inputs, VTR input/output, monitor out and pre-amp out. Two system connectors. Terminals for two pairs of loudspeakers and a jack for headphones. Two unswitched and one switched AC outlets. Digital clock, Timer, 3 radio station presets, 75Ω coax socket and connectors for an AM loop aerial.

Power Amplifier
Rated output:                  Both channels driven (CD → SP OUT)
                                      20Hz - 20kHz, 8Ω load, 50W + 50W
Total harmonic distortion: 0.008%
Frequency Response:      20Hz - 50kHz ±1.5dB (with 1W output)

Pre-amplifier
Input sensitivity:     PHONO: 2.5mV/47kΩ
  input impedance: CD, TAPE and VIDEO: 150mV/70kΩ

Video
Input sensitivity/
  input impedance:   1 Vp-p/75Ω
Output level/
  output impedance: 1 Vp-p/75Ω

Tuner
Frequency bands:       FM 87.5MHz-108.0MHz,
                                 MW 522kHz-1611kHz, LW 153kHz-279kHz
Reception sensitivity:  FM: 0.9 µV, 75Ω (3% distortion), MW: 18 µV, LW: 30 µV
FM stereo separation: 40dB (1 kHz)
FM THD:                    Mono: 0.15%, Stereo: 0.3%
FM S/N ratio:             Mono: 82dB, Stereo: 78dB

Versions/Power Requirements
USA      /    120V AC 60Hz
Europe  /     220V AC 50Hz
U.K.      /     240V AC 50Hz
Power Consumption:  140W

AM/FM-Stereo-Receiver mit 2 x 70 Watt Ausgangsleistung an 4 Ohm.
3 Stationstasten, Digitaluhr.
7 Audio-Ein- und 4 -Ausgänge. Loudness-Taste und Klangregler. A/B-Lautsprecherwahl.
Gehäuseausführung Champagnergold.

Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Source of data -- Original prospect or advert
Mentioned in -- Original prospect or advert (Denon '93/94 Hi-Fi Components catalogue)
Literature/Schematics (1) - - Manufacturers Literature (Operating Instructions DRA-210 Integrated Stereo Receiver)

Model page created by Franz Scharner. See "Data change" for further contributors.
