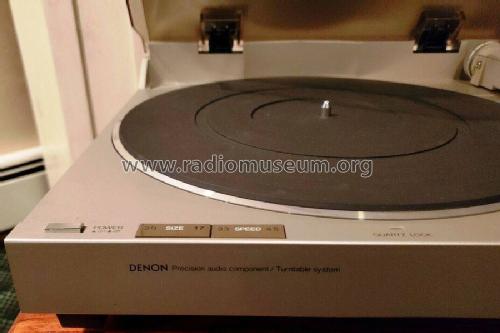

Precision audio component / Turntable system DP-11F

Denon (Marke / brand)

Data
Forum
Pictures
Collections

  • Year
  • 1983
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 258967

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Record Player (not changer); Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 100 or 115 or 120 or 220 or 230 or 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Precision audio component / Turntable system DP-11F - Denon Marke / brand
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 365 x 100 x 335 mm / 14.4 x 3.9 x 13.2 inch
  • Notes

  • A 2-Speed (33 & 45 rpm) fully automatic with microprocessor control direct drive turntable, complete with a low mass straight tonearm fitted with a Denon DL-60 Moving Magnet cartridge (no cartridge fitted to USA or Canada models). Servo Controlled Direct Drive.  300mm Aluminum Die-Cast platter. Power Consumption 7 Watts.

    Versions/Power Requirements
    Canada & USA        / 120V AC 60Hz
    Europe & Australia  / 220/240V AC 50Hz  switchable
    Japan                      / 100V AC 50/60Hz
    Multi-voltage model / 115/230V AC 50/60Hz switchable

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Mentioned in
  • - - Manufacturers Literature (1983 Denon Product Catalogue)
  • Literature/Schematics (1)

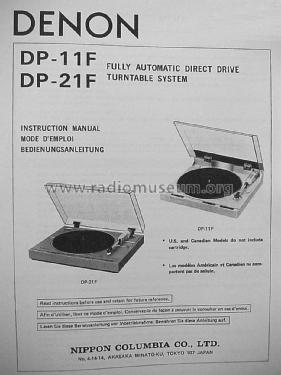

  • - - Manufacturers Literature (Service Manual DP-11F Series Fully Automatic Direct Drive Turntable System)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
