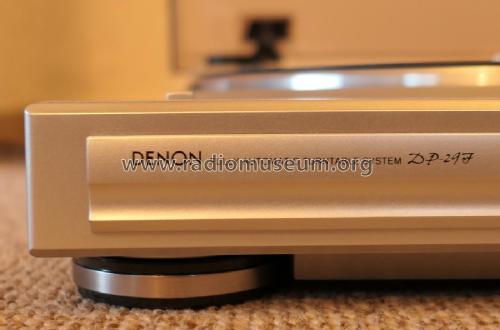

Fully Automatic Turntable System DP-29F

Fully Automatic Turntable System DP-29F; Denon Marke / brand (ID = 2174347) Misc Fully Automatic Turntable System DP-29F; Denon Marke / brand (ID = 2174348) Misc
Fully Automatic Turntable System DP-29F; Denon Marke / brand (ID = 2174349) Misc Fully Automatic Turntable System DP-29F; Denon Marke / brand (ID = 2174350) Misc
Fully Automatic Turntable System DP-29F; Denon Marke / brand (ID = 2174351) Misc Fully Automatic Turntable System DP-29F; Denon Marke / brand (ID = 2174352) Misc
Fully Automatic Turntable System DP-29F; Denon Marke / brand (ID = 2174353) Misc Fully Automatic Turntable System DP-29F; Denon Marke / brand (ID = 2174354) Misc
Fully Automatic Turntable System DP-29F; Denon Marke / brand (ID = 2174355) Misc Fully Automatic Turntable System DP-29F; Denon Marke / brand (ID = 2174356) Misc
Use red slider bar for more.
Fully Automatic Turntable System DP-29F; Denon Marke / brand (ID = 2174347) Misc
Denon Marke / brand: Fully Automatic Turntable System DP-29F [Misc] ID = 2174347 1400x1130
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fully Automatic Turntable System DP-29F, Denon (Marke / brand)

Country:  Japan
Manufacturer / Brand:  Denon (Marke / brand)
Year: 2015/2016 Category: Miscellaneous (Other, Various) - see notes
Wave bands - without
Details Record Player (not changer); Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Fully Automatic Turntable System DP-29F - Denon Marke / brand
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 360 x 97 x 357 mm / 14.2 x 3.8 x 14.1 inch
Notes

Antriebsart: Riemen
Motor: DC Servomotor
Drehzahl: 33 1/3 und 45 U/min
Gleichlaufschwankungen: 0,15 WRMS
Tonarm: Dynamisch ausbalanciert
Effektive Tonarmlänge: 195mm
Auflagekraft  Abtastnadel: 3,5 g fest
Tonabnehmer: DSN 82
Ausgangsspannung: 2,5 mV
Leistungsaufnahme: 2 Watt

Made in China.

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 129.00 Euro

Model page created by Ralf Meinke. See "Data change" for further contributors.
