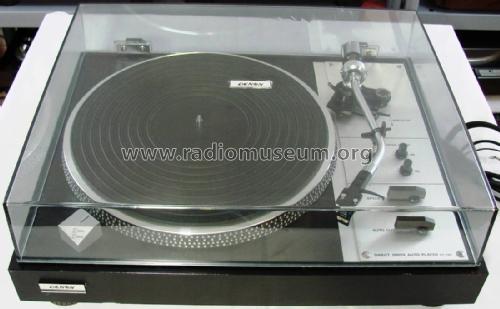

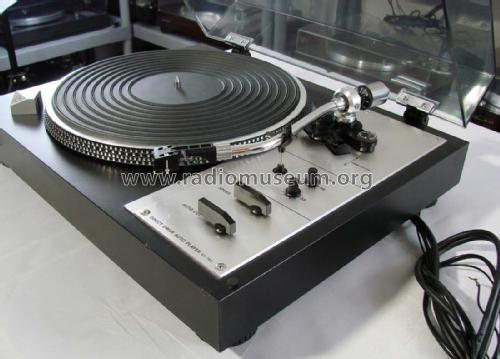

Direct Drive Auto Player GT-750

Direct Drive Auto Player GT-750; Denon Marke / brand (ID = 2412472) R-Player Direct Drive Auto Player GT-750; Denon Marke / brand (ID = 2412473) R-Player
Direct Drive Auto Player GT-750; Denon Marke / brand (ID = 2412474) R-Player Direct Drive Auto Player GT-750; Denon Marke / brand (ID = 1600045) R-Player
Direct Drive Auto Player GT-750; Denon Marke / brand (ID = 1600065) R-Player Direct Drive Auto Player GT-750; Denon Marke / brand (ID = 1604069) R-Player
Direct Drive Auto Player GT-750; Denon Marke / brand (ID = 2412475) R-Player
Use red slider bar for more.
Direct Drive Auto Player GT-750; Denon Marke / brand (ID = 2412472) R-Player
Denon Marke / brand: Direct Drive Auto Player GT-750 [R-Player] ID = 2412472 1100x790
Select picture or schematic to display from thumbnails on the right and click for download.
For model Direct Drive Auto Player GT-750, Denon (Marke / brand):
Sold on archiwum.allegro.pl item 7902885550

Country:  Japan
Manufacturer / Brand:  Denon (Marke / brand)
Year: 1978 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details Record Player (not changer); Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Direct Drive Auto Player GT-750 - Denon Marke / brand
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 460 x 160 x 390 mm / 18.1 x 6.3 x 15.4 inch
Notes

A servo-controlled DC direct drive 2 speed (33, 45rpm) stereo hi-fi semi-automatic turntable complete with S shaped tonearm with anti-skate fitted with an Ortofon FF 15 E O MkII cartridge. Speed adjustment with stroboscope. Its platter is a 310mm diameter Aluminum alloy injection molding with stroboscope marks weighing 1.5 kg. Power consumption 13 watts.


Denon direktgetriebener Plattenspieler Modell GT-750.
2 Geschwindigkeiten 33 & 45 U/min
Plattenteller: Alu-Legierung Spritzguss 310mm mit Stroboskop-Marken, 1,5 kg
Tonabnehmer: Ortofon FF 15 E O MkII
Leistungsaufnahme 13 Watt.
Konsole: schwarz.


Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)

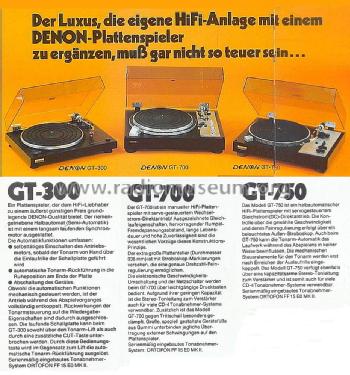

Mentioned in -- Original prospect or advert (Denon 1978/79 Hi-Fi Programm)

Model page created by Franz Scharner. See "Data change" for further contributors.
