PCM Audio Technology / Compact Disc Player DCD-3560

Denon (Marke / brand)

Data
Forum
Pictures
Collections

  • Year
  • 1990
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 312663

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 120 or 220 or 230 or 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: PCM Audio Technology / Compact Disc Player DCD-3560 - Denon Marke / brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 434 x 135 x 390 mm / 17.1 x 5.3 x 15.4 inch
  • Notes

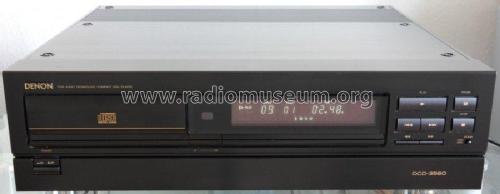

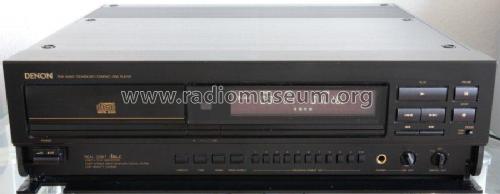

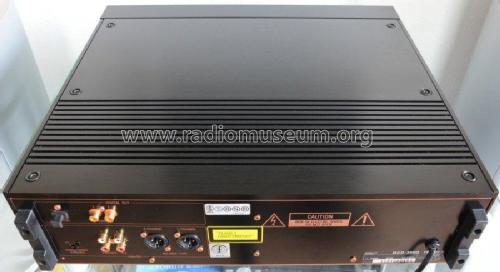

  • A stereo hi-fi compact disc player with remote control (RC-222). With ASLC (Advanced Super Linear Converter) Real 20 Bit 4-DAC LAMBDA Super Linear Converter with an 8 times oversampling digital filter. Low gravity chassis. RCA sockets for fixed and variable line out, XLR balanced output connectors, terminal for optical digital output, two coaxial sockets for digital output and a Headphones/Variable output On/Off switch. Jack for headphones with volume level control .

    Specification
    Number of channels:    2
    Frequency response:   2 - 20,000 Hz, ±0.2 dB
    Dynamic range:          100 dB or greater
    S/ N ratio:                  120 dB (1 kHz)
    Harmonic distortion:    0.0015% (1 kHz)
    Separation:                110 dB (1 kHz)
    Output voltage:           Fixed: 2.0 Vrms
                                     Balanced type: 2 Vrms/10 kΩ load
                                     Variable: 2.0 Vrms/line out volume max.
                                    (Variable output voltage with no 600Ω load on balanced type output) Signal Format
    Sampling frequency:   44.1 kHz
    Quantization bit:         16-bit linear/channel
    Transfer bit rate:         4.3218 Mb/sec.

    Digital Output Signal Format
    Format:                     Digital audio interface AES EBU
    Coaxial output voltage: 0.5 Vpp, 75Ω
    Optical power:          -12 dBm
    Light wavelength:       650 nm

    Pickup (Sony KSS-151A)
    Type:                        Objective lens driving type optical pickup
    Lens drive system:     Two-dimensional parallel driving
    Light source:             Semiconductor laser
    Wavelength:              780 nm

    Functions:
    Direct search, automatic search, program search, repeat play, manual search,
    index search, time search

    Displays:
    Track number, index, time, program

    Versions/Power Requirements
    USA  /  120V AC 60Hz
    Europe / 220V AC 50/60Hz
    Europe (Late) / 230V AC 50/60Hz
    UK, Australia  /  240V AC 50/60Hz

  • Net weight (2.2 lb = 1 kg)
  • 17 kg / 37 lb 7.1 oz (37.445 lb)
  • Mentioned in
  • -- Original prospect or advert (Denon 1990 - 1991 Hi-Fi Bausteine Katalog)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual Stereo CD Player model DCD-3560)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
