Integrated Stereo Amplifier PMA-210

Integrated Stereo Amplifier PMA-210; Denon Marke / brand (ID = 2407258) Ampl/Mixer Integrated Stereo Amplifier PMA-210; Denon Marke / brand (ID = 2407259) Ampl/Mixer
Integrated Stereo Amplifier PMA-210; Denon Marke / brand (ID = 2407260) Ampl/Mixer Integrated Stereo Amplifier PMA-210; Denon Marke / brand (ID = 2407261) Ampl/Mixer
Integrated Stereo Amplifier PMA-210; Denon Marke / brand (ID = 561281) Ampl/Mixer
Use red slider bar for more.
Integrated Stereo Amplifier PMA-210; Denon Marke / brand (ID = 2407258) Ampl/Mixer
Denon Marke / brand: Integrated Stereo Amplifier PMA-210 [Ampl/Mixer] ID = 2407258 1400x310
Select picture or schematic to display from thumbnails on the right and click for download.
For model Integrated Stereo Amplifier PMA-210, Denon (Marke / brand):
Sold on archiwum.allegro.pl item 7242120071

Country:  Japan
Manufacturer / Brand:  Denon (Marke / brand)
Year: 1993 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - This model requires external speaker(s).
Power out 130 W (200 W max.)
from Radiomuseum.org Model: Integrated Stereo Amplifier PMA-210 - Denon Marke / brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 434 x 92 x 404 mm / 17.1 x 3.6 x 15.9 inch
Notes

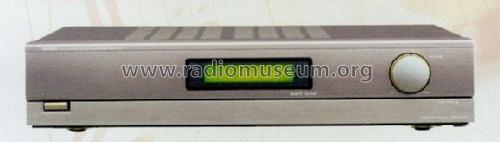

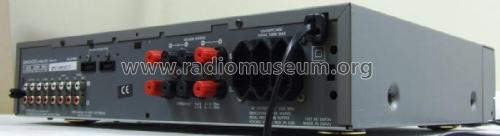

A stereo integrated amplifier with 2 x 65 watt output power (into 8 ohms) housed in a champagne gold metal case, with remote control (RC-171). Source direct circuit, digital clock, daily timer with snooze function, motor-driven remote volume control. Input RCA sockets for phono, CD, Tuner and Aux, and input/output RCA sockets for two tape recorders. Two system connectors. Three unswitched AC outlets. Terminals for two pairs of loudspeakers and a jack for headphones.

Rated output:                  65 W + 65 W (8 ohms 20Hz-20kHz)
                                     100 W + 100 W (4 ohms continuous 1 kHz)
Total harmonic distortion: 0.008% (-3 dB rated output 8 ohms)
Signal-to-noise ratio:       86 dB (MM), 96 dB (AUX)

Stereo-Vollverstärker mit 2x100 Watt Sinus an 4 Ohm. Quellen-Direkt-Schaltung, täglicher Timer mit Schlummer-Funktion, Digitaluhr.
7 Audio-Eingänge, A/B-LS-Wahlschalter.
Gehäuseausführung Champagnergold.

Net weight (2.2 lb = 1 kg) 7.2 kg / 15 lb 13.7 oz (15.859 lb)
Source of data -- Original prospect or advert
Mentioned in - - Manufacturers Literature (Denon '93/94 Hi-Fi Components catalogue)

Model page created by Franz Scharner. See "Data change" for further contributors.
