• Country
• Japan

• Manufacturer / Brand
• Denon (Marke / brand)

• Year
• 1987 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 160697

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• 2SC2579 2SA1104 2SA1104 2SC2579

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 120 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

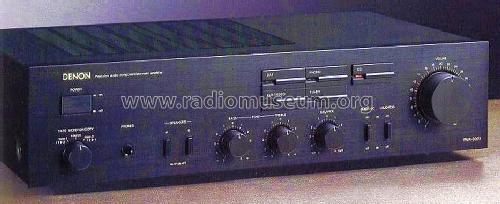

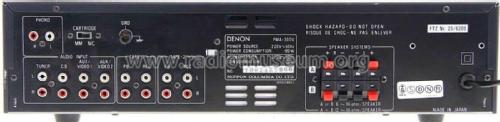

• Model: Precision audio component / pre-main amplifier PMA-300V - Denon Marke / brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 434 x 112 x 281 mm / 17.1 x 4.4 x 11.1 inch

• Notes
• Integrated Stereo Amplifier with 60 Watts per channel into 8 ohms.

• Net weight (2.2 lb = 1 kg)
• 5.8 kg / 12 lb 12.4 oz (12.775 lb)

• Price in first year of sale
• 44,800.00 JPY

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
