Precision Audio Component PMA-850
Denon (Marke / brand)
- Country
- Japan
- Manufacturer / Brand
- Denon (Marke / brand)
- Year
- 1977
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 160781
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 170 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Precision Audio Component PMA-850 - Denon Marke / brand
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 434 x 164 x 400 mm / 17.1 x 6.5 x 15.7 inch
- Notes
-
Denon Stereo Integrated Amplifier Model Precision Audio Component 850.
Power output: 85 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.01%
Input sensitivity: 0.37mV (MC), 2.5mV (MM), 320mV (line)
Signal to noise ratio: 74dB (MC), 89dB (MM), 105dB (line)
Output: 320mV (line), 1V (Pre out)
Speaker load impedance: 4Ω to 16Ω
Bass Control (100Hz +/-8dB)
Treble Control (10000Hz +/-8dB)
Subsonic Filter 20Hz, 12dB/Oct
High Cut Filter 9000Hz, 12dB/Oct
Power Requirements:
120VAC 60Hz
220VAC 50Hz
Power Consumption
220 Watts (for U.S.A.), 600Watts (at max. output power)
AC Outlets:
for USA & Canada: Unswitched max. 150 Watts, Switched max. 250 Watts
- Net weight (2.2 lb = 1 kg)
- 17 kg / 37 lb 7.1 oz (37.445 lb)
- Price in first year of sale
- 109,000.00 JPY
- Mentioned in

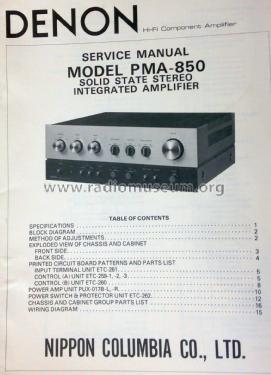

- - - Manufacturers Literature (Service Manual)
- Literature/Schematics (1)

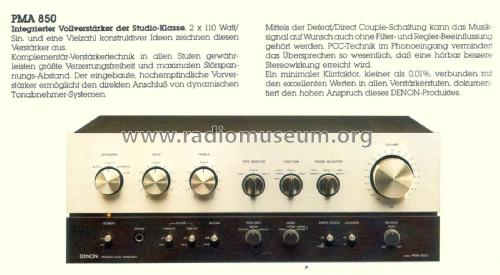

- -- Original prospect or advert (Katalog - Professional Audio Component)
- Literature/Schematics (2)

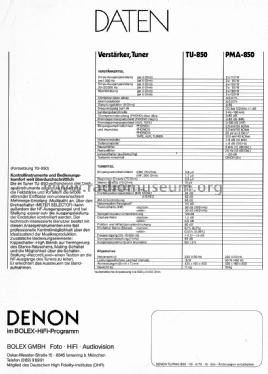

- -- Original prospect or advert (Katalog - HiFi-Programm)
- Literature/Schematics (3)
- -- Original prospect or advert (Katalog - Studio-Phonie)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
