Precision Audio Component/Stereo Cassette Tape Deck DR-M12HX

• Country
• Japan

• Manufacturer / Brand
• Denon (Marke / brand)

• Year
• 1987 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 254034

• Picture

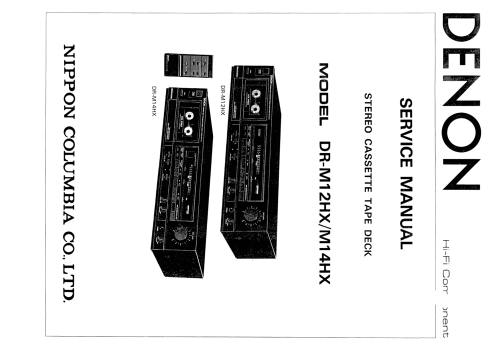

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Precision Audio Component/Stereo Cassette Tape Deck DR-M12HX - Denon Marke / brand

• Shape
• Book-shelf unit.

• Notes

• Denon 3-Motor Frontloading Precision Audio Component/Stereo Cassette Tape Deck Model DR-M12HX.
  Silent Mechanism, Dual Power Supply System
  Dolby HX Pro, B+C, MPX-Filter
  Bias Fine Tuning, Music Search
  Fluorescent Peak Meter, Auto Tape Selector
  Power Consumption 18 Watts
  Wooden Side Panels




• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
