• Country
• France

• Manufacturer / Brand
• Depaèpe; Paris, Bois-Colombes

• Year
• 1939 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 216282

• Number of Tubes
• 5

• Valves / Tubes
• 6E8MG 6K7MG 6H8 25L6GT 25Z6GT RTC1

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 100-120 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 12.5 cm = 4.9 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Inconnu - Unknown 1 - Depaèpe; Paris, Bois-Colombes

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 250 x 180 x 148 mm / 9.8 x 7.1 x 5.8 inch

• Notes
• Depaèpe French Radio, unknown model.

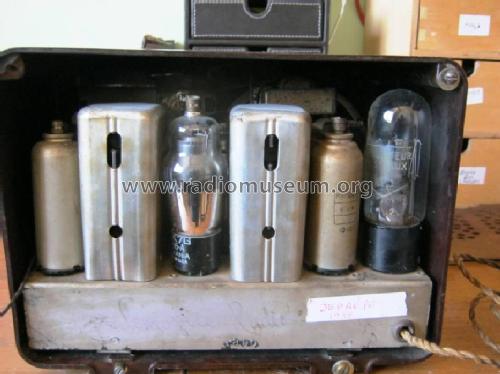

  Barretter used for heater ballast (Visseaux type RTC1).
  Soldering/construction suggests it has been built in a small workshop.

  Wavebands
  LW(GO): 1000-2000m
  MW(PO): 200-550m
  SW(OC): 20-50m

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Mentioned in
• Le grand livre de la TSF (Doctsf Ref 12822)
