610A

Desmet, SGER (S.G.E.R.); Lille, Faches-Thumesnil

Data

Forum

Pictures

Collections

Country
France

Manufacturer / Brand
Desmet, SGER (S.G.E.R.); Lille, Faches-Thumesnil

Year
1947/1948 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
76576

Schematics

610A; Desmet, SGER S.G.E.R (ID = 264826) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 264827) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 264829) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 128594) Radio — Desmet, SGER S.G.E.R 610A (2)
Bile ebay. Verkäufer: ullibausm

610A; Desmet, SGER S.G.E.R (ID = 128596) Radio — Desmet, SGER S.G.E.R 610A (2)
Bild ebay. Verkäufer: ullibausm

610A; Desmet, SGER S.G.E.R (ID = 264824) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 264825) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 264828) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 1637642) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 1637643) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 1637644) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 1637645) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 1637646) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 1637647) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 1637648) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 1637649) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 1637650) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 1637651) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 1637652) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 1797173) Radio — Desmet, SGER S.G.E.R 610A (1)

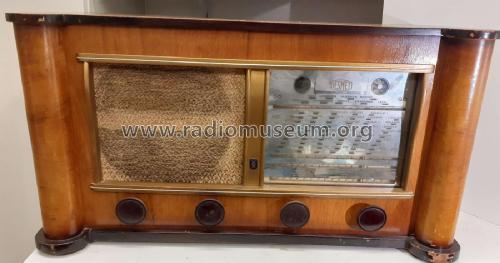

610A; Desmet, SGER S.G.E.R (ID = 2904116) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 2904117) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 2904118) Radio — Desmet, SGER S.G.E.R 610A (1)

610A; Desmet, SGER S.G.E.R (ID = 2904119) Radio — Desmet, SGER S.G.E.R 610A (1)

Technical Specifications

Number of Tubes
6

Valves / Tubes
6E8MG 6M7 6H8MG 6M6GT 6AF7G 5Y3GB

Main principle
Superheterodyne (common)

Wave bands
Broadcast, Long Wave and Short Wave.

Power type and voltage
Alternating Current supply (AC) / 110, 130, 150, 220, 240 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

Material
Wooden case

from Radiomuseum.org
Model: 610A - Desmet, SGER S.G.E.R.; Lille,

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
570 x 305 x 285 mm / 22.4 x 12 x 11.2 inch

Net weight (2.2 lb = 1 kg)
11.7 kg / 25 lb 12.3 oz (25.771 lb)

Author
Model page created by Lutwin Berndt † 5.10.14. See "Data change" for further contributors.
