• Year
  • 1933/1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 139145

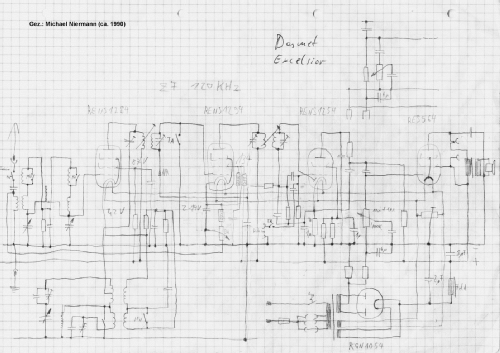

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 120 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 140; 220; 245 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: L'Excelsior - Desmet, SGER S.G.E.R.; Lille,
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 390 x 540 x 290 mm / 15.4 x 21.3 x 11.4 inch
  • Notes
  • Coffret noyer verni au tampon.

  • Price in first year of sale
  • 1'795.00 FRF
  • Mentioned in
  • Radio & Phono Materiel, No. 95, Mars 1934
  • Literature/Schematics (1)
  • -- Original prospect or advert (Gamme "Super Desmet 1934")
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
