197 PeeWee

197 PeeWee; Detrola; Detroit MI (ID = 298539) Radio
197 PeeWee; Detrola; Detroit MI (ID = 258702) Radio 197 PeeWee; Detrola; Detroit MI (ID = 380466) Radio
197 PeeWee; Detrola; Detroit MI (ID = 266650) Radio 197 PeeWee; Detrola; Detroit MI (ID = 2094025) Radio
197 PeeWee; Detrola; Detroit MI (ID = 2376340) Radio
Use red slider bar for more.
197 PeeWee; Detrola; Detroit MI (ID = 258702) Radio

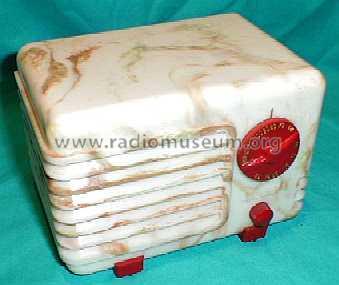

Detrola; Detroit MI: 197 PeeWee [Radio] ID = 258702 400x305
Select picture or schematic to display from thumbnails on the right and click for download.
For model 197 PeeWee, Detrola; Detroit (MI):
From the collection of Miniradios, France.

Country:  United States of America (USA)
Manufacturer / Brand:  Detrola; Detroit (MI)
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6K7 6J7 25L6 25Z6
Main principle TRF without regeneration; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 197 PeeWee - Detrola; Detroit MI
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 160 x 110 x 100 mm / 6.3 x 4.3 x 3.9 inch
Notes Resistance line cord 165 Ohms.
Price in first year of sale 15.00 $
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Collector's Guide to Antique Radios (7th Edition) (page 78)
Literature/Schematics (2) -- Original prospect or advert (Milwaukee Journal, December 21, 1937, page 8)
