216 Junior Pee-Wee (Detrola JR)

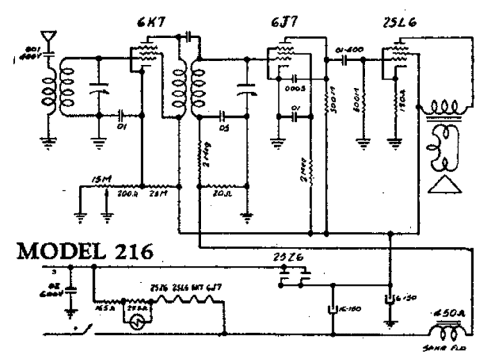

216 Junior Pee-Wee ; Detrola; Detroit MI (ID = 298663) Radio

216 Junior Pee-Wee ; Detrola; Detroit MI (ID = 844209) Radio

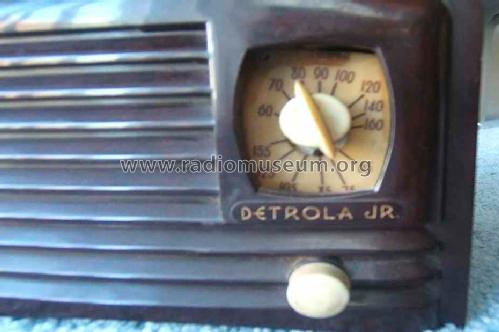

216 Junior Pee-Wee ; Detrola; Detroit MI (ID = 1485501) Radio 216 Junior Pee-Wee ; Detrola; Detroit MI (ID = 1485500) Radio

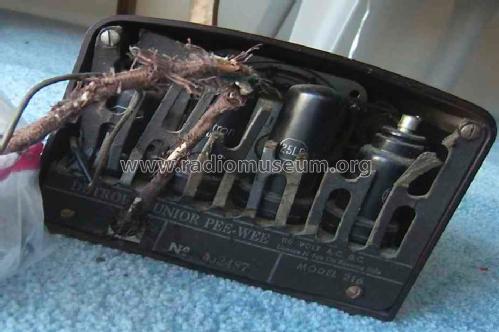

216 Junior Pee-Wee ; Detrola; Detroit MI (ID = 1485502) Radio
Use red slider bar for more.
216 Junior Pee-Wee ; Detrola; Detroit MI (ID = 1485501) Radio
Detrola; Detroit MI: 216 Junior Pee-Wee [Radio] ID = 1485501 932x620
Select picture or schematic to display from thumbnails on the right and click for download.
For model 216 Junior Pee-Wee (Detrola JR), Detrola; Detroit (MI)

Country:  United States of America (USA)
Manufacturer / Brand:  Detrola; Detroit (MI)
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6K7 6J7 25L6 25Z6
Main principle TRF without regeneration; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 216 Junior Pee-Wee - Detrola; Detroit MI
Material Bakelite or Plastics (type unknown)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes The Detrola Junior Pee-Wee 216 is a small radio with just one button on the front right, like the "propeller scale" which naturally includes a turning knob in the center, often with a sharp color contrast. The models came in different colors.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before


All listed radios etc. from Detrola; Detroit (MI)
Here you find 325 models, 186 with images and 282 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
