303 ; Detrola; Detroit MI (ID = 1668408) Radio

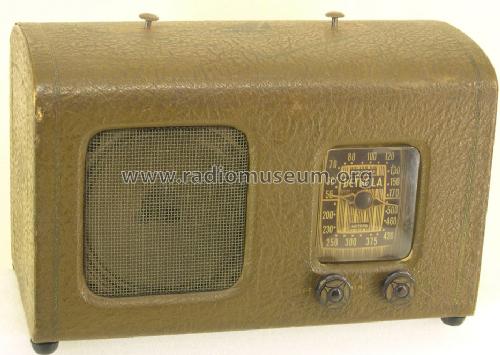

Detrola; Detroit MI: 303 [Radio] ID = 1668408 933x663
Select picture or schematic to display from thumbnails on the right and click for download.
For model 303, Detrola; Detroit (MI):
Durch Einbau eines Netzteils ziemlich verbastelt.

Country:  United States of America (USA)
Manufacturer / Brand:  Detrola; Detroit (MI)
Year: 1940 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1A7 1N5 1H5 1T5
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1,5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 303 - Detrola; Detroit MI
Notes Built-in loop antenna used as first RF circuit.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
