197 Pee Wee long wave

197 Pee Wee; Detrola; Detroit MI (ID = 296686) Radio

197 Pee Wee; Detrola; Detroit MI (ID = 655471) Radio
197 Pee Wee; Detrola; Detroit MI (ID = 271244) Radio 197 Pee Wee; Detrola; Detroit MI (ID = 271245) Radio
197 Pee Wee; Detrola; Detroit MI (ID = 380467) Radio 197 Pee Wee; Detrola; Detroit MI (ID = 506615) Radio
197 Pee Wee; Detrola; Detroit MI (ID = 506617) Radio 197 Pee Wee; Detrola; Detroit MI (ID = 506619) Radio
Use red slider bar for more.
197 Pee Wee; Detrola; Detroit MI (ID = 271244) Radio

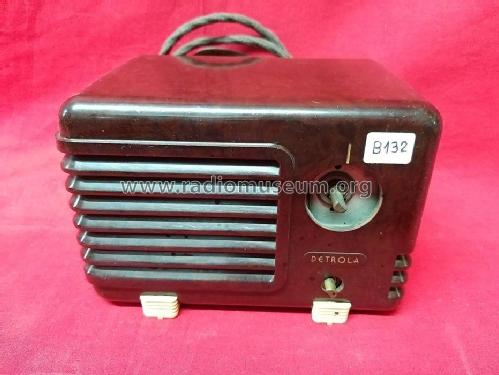

Detrola; Detroit MI: 197 Pee Wee [Radio] ID = 271244 933x684
Select picture or schematic to display from thumbnails on the right and click for download.
For model 197 Pee Wee long wave, Detrola; Detroit (MI)

Country:  United States of America (USA)
Manufacturer / Brand:  Detrola; Detroit (MI)
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6K7 6J7 25L6 25Z6
Main principle TRF without regeneration; Reflex
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 197 Pee Wee [long wave] - Detrola; Detroit MI
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 6.5 x 4.5 x 4 inch / 165 x 114 x 102 mm
Notes This is the export version of the PeeWee 197 from Detrola - it has LW and BC. See also the domestic version and the version with a wooden cabinet.
Source of data -- Collector info (Sammler)
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Collector's Guide to Antique Radios (3rd edition)
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (- all Literature is for the standard version !)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
