4520 W

4520 W; Deutsche Werke (ID = 1181627) Television 4520 W; Deutsche Werke (ID = 1181628) Television
4520 W; Deutsche Werke (ID = 1181630) Television 4520 W; Deutsche Werke (ID = 1181633) Television
4520 W; Deutsche Werke (ID = 1181635) Television 4520 W; Deutsche Werke (ID = 1181636) Television
4520 W; Deutsche Werke (ID = 1181637) Television
Use red slider bar for more.
4520 W; Deutsche Werke (ID = 1181627) Television
Deutsche Werke: 4520 W [Television] ID = 1181627 737x983
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4520 W, Deutsche Werke Apparatebau GmbH; Kiel

Country:  Germany
Manufacturer / Brand:  Deutsche Werke Apparatebau GmbH; Kiel
Year: 1951 ? Category: Television Receiver (TV) or Monitor
Main principle Superheterodyne (common); ZF/IF ? kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line (AC, UC or DC not known) / 220 Volt

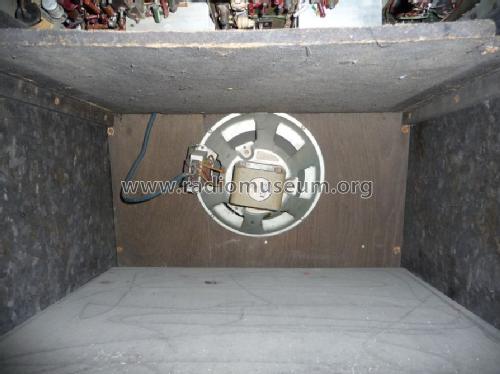

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 24 cm = 9.4 inch
Power out
from Radiomuseum.org Model: 4520 W - Deutsche Werke Apparatebau
Material Wooden case
Shape Console with any shape - in general
Notes Bildröhre rund ca. 30 cm. Gerät wurde auch mit Spiegelbetrachtung gebaut.

Model page created by Thorsten Finaske. See "Data change" for further contributors.
