• Country
• United States of America (USA)

• Manufacturer / Brand
• DeVry Technical Institute; Chicago

• Year
• 1955 ?

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 329937

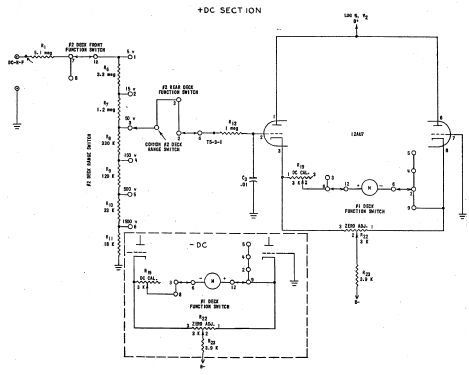

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6AL5 12AU7

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: VTVM 1S14 - DeVry Technical Institute;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 170 x 240 x 125 mm / 6.7 x 9.4 x 4.9 inch

• Notes

• VTVM kit to build as part of the DeVry radio repair training course.

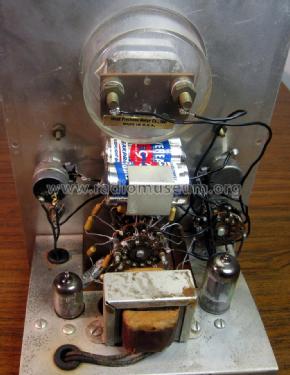

  Two internal D cell batteries in series (D: 2 x 1.5V) used for resistance readings.

• Author
• Model page created by Jay Kinnard. See "Data change" for further contributors.
