- Country
- United States of America (USA)
- Manufacturer / Brand
- DeWald Radio Mfg. Corp., Pierce Airo Inc.
- Year
- 1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 149876
-
- Brand: Pierce Airo
vista frontale
Retro

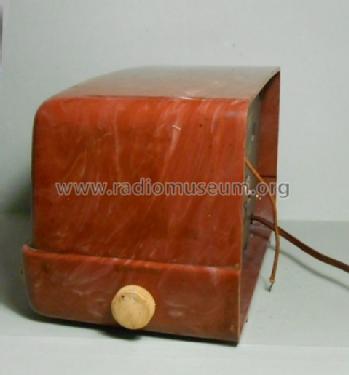

vista laterale
particolare scala
Sams Photofact Folders

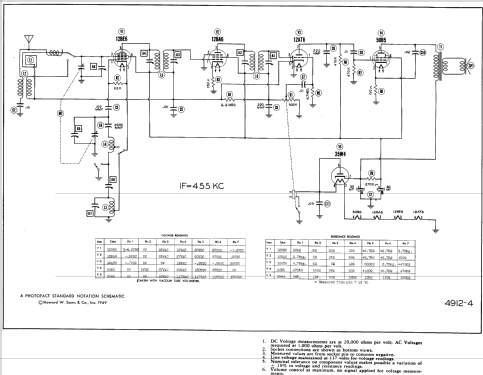

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- from Radiomuseum.org
- Model: C-516 - DeWald Radio Mfg. Corp.,
- Shape
- Tablemodel, with any shape - general.
- Notes
- The DeWald Model C-516 is an AC/DC operated AM Superheterodyne Receiver with Loop Antenna.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 6-49, Set 64, Folder 4)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
