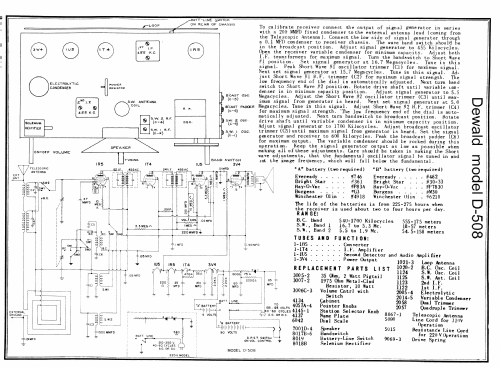

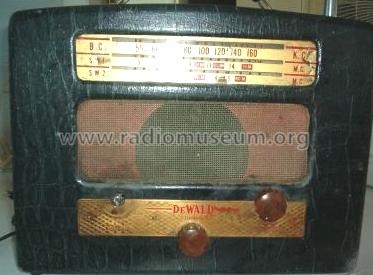

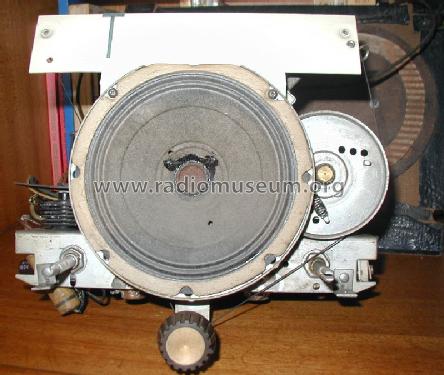

DeWald Radio Mfg.: D-508A [Radio] ID = 1760152 1280x853
Select picture or schematic to display from thumbnails on the right and click for download.
For model D-508A, DeWald Radio Mfg. Corp., Pierce Airo Inc.

Country:  United States of America (USA)
Manufacturer / Brand:  DeWald Radio Mfg. Corp., Pierce Airo Inc.
Brand

Pierce Airo
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 105-125 or 210-240 / 90; 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: D-508A - DeWald Radio Mfg. Corp.,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 240 x 150 mm / 12.6 x 9.4 x 5.9 inch
Notes With Resistor cord 210-240 Volts. Up to now we believe that model D-508 and D-508A is the same - just a shorter writing. NOrmally in the plan you find D-508 and on the plate D-508A. On the schematic (D-508) the model(s) show BC 540-177 Kc, Band 1 16.7 to 5.3 Mc and Band 2 5.5 to 1.9 Mc. Please add your remarks if you come accross of any differenciation. Since there still may be found differences we leave the new model D-508A and don't delete it as a doublette. See book references and other plans on model D508.
Source of data - - Data from my own collection

Model page created by Vitor Oliveira. See "Data change" for further contributors.
