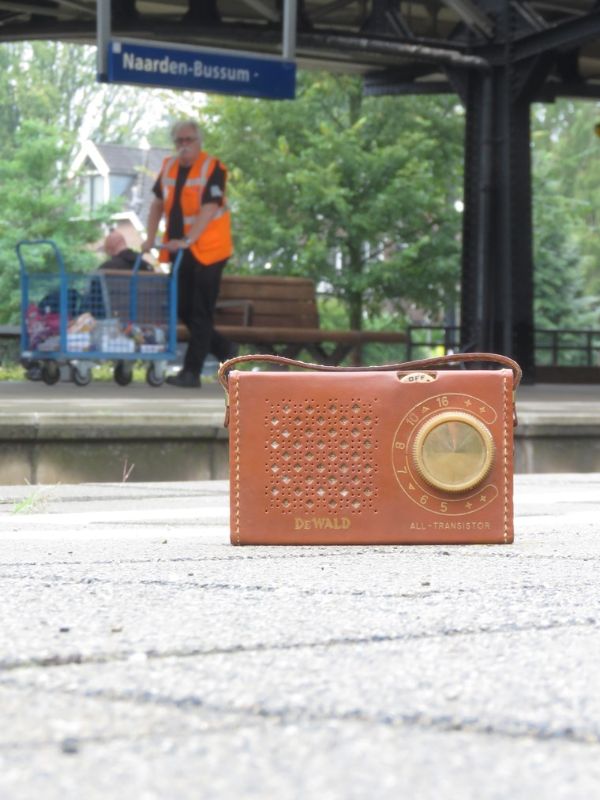

For model K-544A, DeWald Radio Mfg. Corp., Pierce Airo Inc.

Country:  United States of America (USA)
Manufacturer / Brand:  DeWald Radio Mfg. Corp., Pierce Airo Inc.
Brand

Pierce Airo
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4:
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
Power out
from Radiomuseum.org Model: K-544A - DeWald Radio Mfg. Corp.,

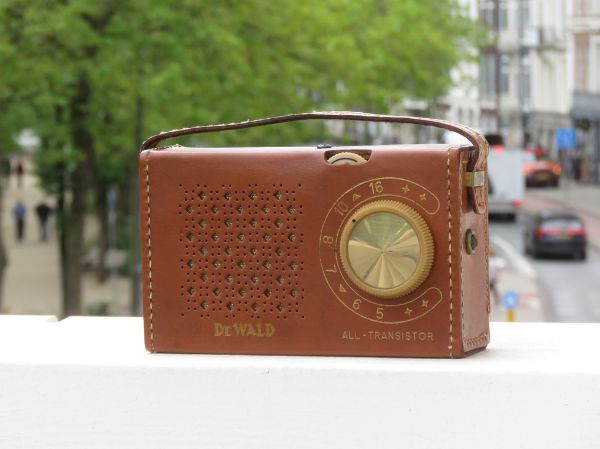

Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 5.87 x 3.5 x 1.87 inch / 149 x 89 x 47 mm

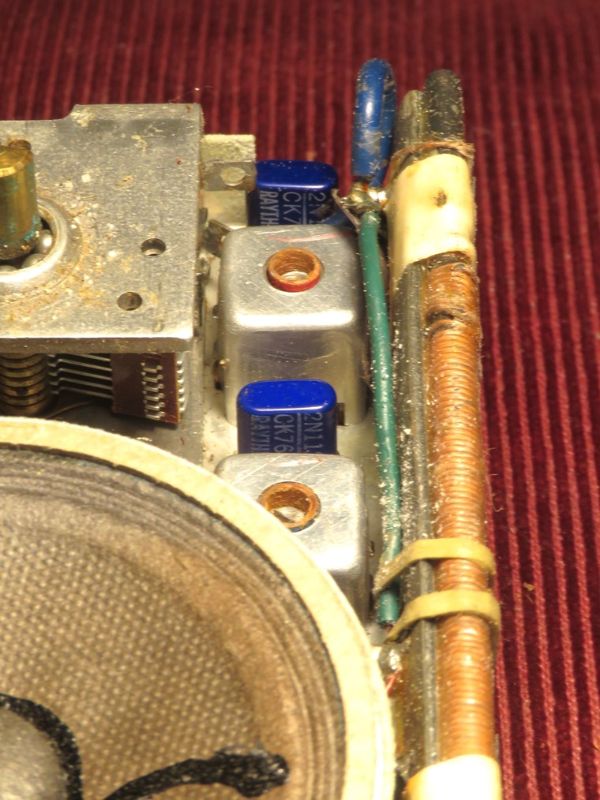

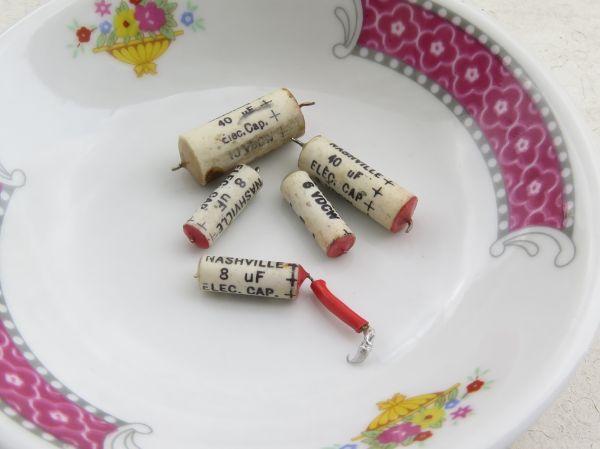

Notes Transistors: 2N112, 2N112A, 2N132, 2N138
Circuit diagram reference Beitman Radio Diagrams Vol. 17, 1957
Literature/Schematics (1) SAMS Servicing Transistor Radios, vol. TSM-2
Literature/Schematics (2) Photofact Folder, Howard W. SAMS (Set 347 Folder 4 Date 2-57)

Model page created by Egon Penker. See "Data change" for further contributors.
