Grand Marc GP-901

Grand Marc GP-901; Dia Musen Sangyo Co. (ID = 1618040) Radio Grand Marc GP-901; Dia Musen Sangyo Co. (ID = 1618037) Radio

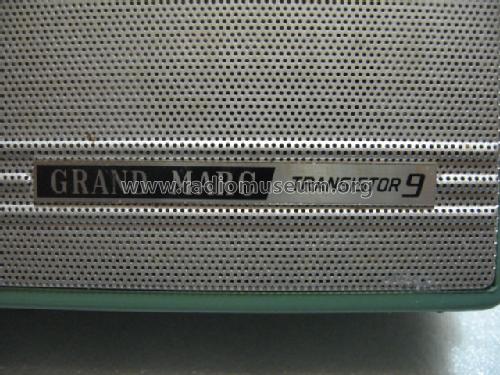

Grand Marc GP-901; Dia Musen Sangyo Co. (ID = 1618038) Radio Grand Marc GP-901; Dia Musen Sangyo Co. (ID = 1618042) Radio

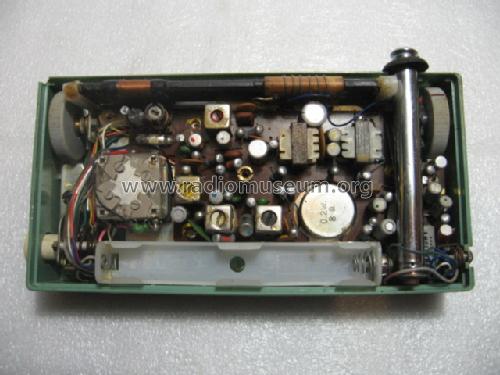

Grand Marc GP-901; Dia Musen Sangyo Co. (ID = 1618044) Radio Grand Marc GP-901; Dia Musen Sangyo Co. (ID = 1618046) Radio
Grand Marc GP-901; Dia Musen Sangyo Co. (ID = 1618048) Radio
Use red slider bar for more.
Grand Marc GP-901; Dia Musen Sangyo Co. (ID = 1618040) Radio
Dia Musen Sangyo Co.: Grand Marc GP-901 [Radio] ID = 1618040 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grand Marc GP-901, Dia Musen Sangyo Co.,Ltd., Tokyo

Country:  Japan
Manufacturer / Brand:  Dia Musen Sangyo Co.,Ltd., Tokyo
Year: 1962 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / UM-3: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Grand Marc GP-901 - Dia Musen Sangyo Co.,Ltd.,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

Grand Marc 9 Transistor AM radio

Model page created by Aldo Andreani. See "Data change" for further contributors.



All listed radios etc. from Dia Musen Sangyo Co.,Ltd., Tokyo
Here you find 5 models, 5 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
