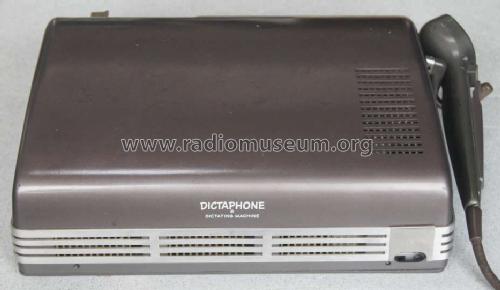

For model Time - Master, Dictaphone Co.; New York, Mountan View

Country:  United States of America (USA)
Manufacturer / Brand:  Dictaphone Co.; New York, Mountan View
Year: 1955 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: 6BH6 12AU7 50C5 50C5
Main principle Audio-Amplification
Wave bands - without
Details Other Recorder/Player
Power type and voltage AC/DC-set / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.37 inch = 6 cm
Power out
from Radiomuseum.org Model: Time - Master - Dictaphone Co.; New York,
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 12.5 x 4.5 x 9.25 inch / 318 x 114 x 235 mm
Notes

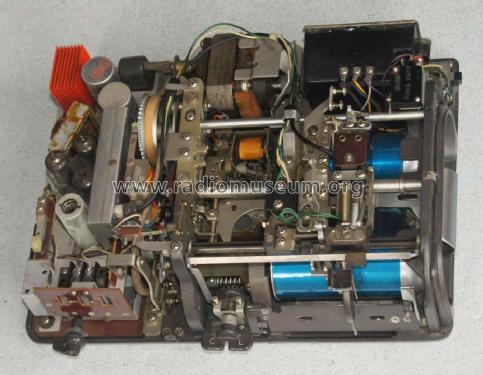

The recording is an endless belt that uses stylus in groove technology like a phonograph record.

Model page created by Peter Janko. See "Data change" for further contributors.
