CB-Mobilfunkgerät Traffic 1

DNT Drahtlose Nachrichtentechnik; Dietzenbach

  • Year
  • 1986 ??
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 249382

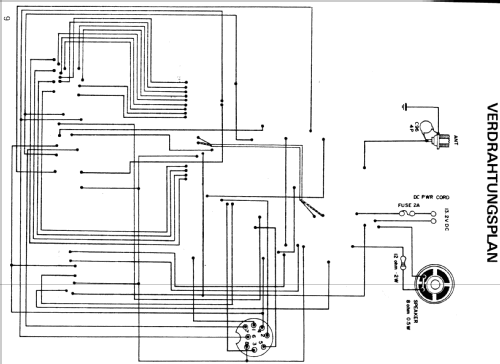

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: CB-Mobilfunkgerät Traffic 1 - DNT Drahtlose
  • Dimensions (WHD)
  • 130 x 30 x 140 mm / 5.1 x 1.2 x 5.5 inch
  • Notes
  • CB-Mobilfunkgerät, 40K FM 4 Watt, K9-Schalter, S-Meter, Up Down-Mikro.

  • Price in first year of sale
  • 220.00 DM
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
