HF5 1972

DNT Drahtlose Nachrichtentechnik; Dietzenbach

Data
Forum
Pictures
Collections

  • Year
  • 1972
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 320004

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 455 kHz
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Batteries / addl. power jack / AA: 8 x 1,5 / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: HF5 [1972] - DNT Drahtlose
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 65 x 180 x 55 mm / 2.6 x 7.1 x 2.2 inch
  • Notes

  • Zweikanal AM CB-Handfunkgerät mit Tonruf, Rauschsperre, Buchsen für Ohrhörer, externe 12 Volt Spannungsversorgung und Akkuladung. Senderausgangsleistung 0,5 Watt. Metallgehäuse in grün oder anthrazit.

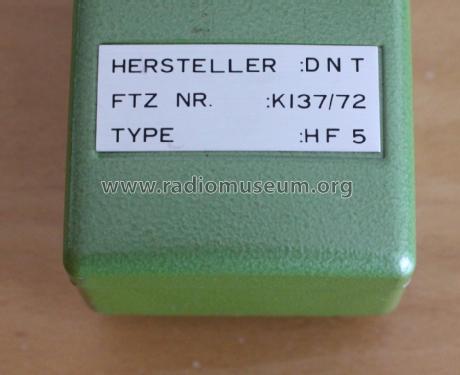

    FTZ-Nr. K137/72. Siehe auch baugleiches Modell mit FTZ-Nr. K137/73.

  • Net weight (2.2 lb = 1 kg)
  • 0.610 kg / 1 lb 5.5 oz (1.344 lb)
  • Author
  • Model page created by Lothar Oelkrug. See "Data change" for further contributors.
