• Country
• Germany

• Manufacturer / Brand
• DNT Drahtlose Nachrichtentechnik; Dietzenbach

• Year
• 1975

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 125495

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 10700/455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 13,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

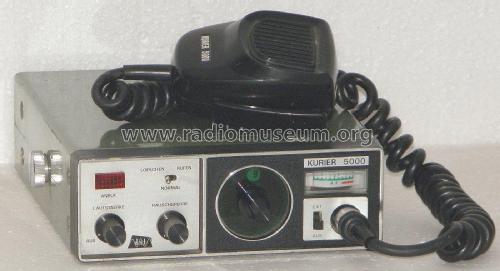

• Model: Kurier 5000 - DNT Drahtlose

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Frequenzbereich: 27,005 bis 27,135 MHz. 12 Kanäle in FM mit 4 Watt HF-Ausgangsleistung. Instrumentenanzeige für RX und TX.

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
