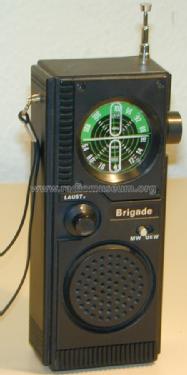

Brigade ; Dreamland (ID = 942834) Radio
Dreamland: Brigade [Radio] ID = 942834 449x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Brigade, Dreamland Electronics Manufactory; Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  Dreamland Electronics Manufactory; Hong Kong
Year: 1974 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.35 W (unknown quality)
from Radiomuseum.org Model: Brigade - Dreamland Electronics
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 75 x 190 x 50 mm / 3 x 7.5 x 2 inch
Notes Brigade brand AM/FM AC/DC, carrying strap and external ac-cord, 10 Transistors + 5 Diodes, Design: so called Military Look but special here dull black. Gross weight with full packing 0.680 kg.g
Net weight (2.2 lb = 1 kg) 0.570 kg / 1 lb 4.1 oz (1.256 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.
