Gran Prix AIE-941

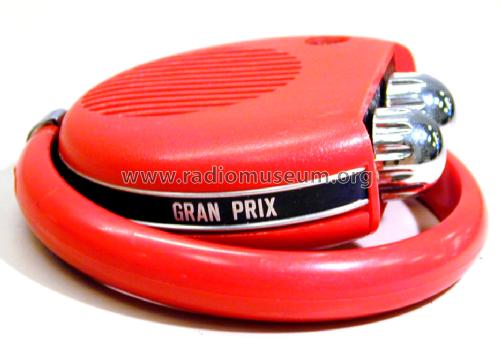

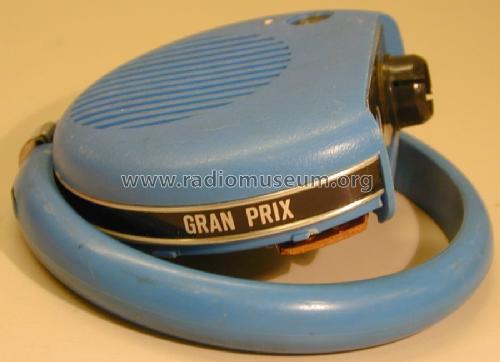

Gran Prix AIE-941; Emperor; Hong Kong (ID = 2322140) Radio
Gran Prix AIE-941; Emperor; Hong Kong (ID = 1013669) Radio Gran Prix AIE-941; Emperor; Hong Kong (ID = 1013671) Radio
Gran Prix AIE-941; Emperor; Hong Kong (ID = 1013672) Radio Gran Prix AIE-941; Emperor; Hong Kong (ID = 1167808) Radio
Gran Prix AIE-941; Emperor; Hong Kong (ID = 1167810) Radio Gran Prix AIE-941; Emperor; Hong Kong (ID = 1167811) Radio
Gran Prix AIE-941; Emperor; Hong Kong (ID = 1168011) Radio Gran Prix AIE-941; Emperor; Hong Kong (ID = 1168012) Radio
Gran Prix AIE-941; Emperor; Hong Kong (ID = 2322141) Radio Gran Prix AIE-941; Emperor; Hong Kong (ID = 2322142) Radio
Use red slider bar for more.
Gran Prix AIE-941; Emperor; Hong Kong (ID = 1013669) Radio
Emperor; Hong Kong: Gran Prix AIE-941 [Radio] ID = 1013669 900x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gran Prix AIE-941, Emperor; Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  Emperor; Hong Kong
Year: 1974 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Gran Prix AIE-941 - Emperor; Hong Kong
Material Modern plastics (no Bakelite or Catalin)
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 102.5 x 30 x 0 mm / 4 x 1.2 x 0 inch
Notes 6 Transistors - 1 Detector Diode - 1 Biasing Diode.
The Model AIE-941 is also known under the brand name Emperor + Aitron.
Item supplied in various pop colors. Gran Prix made by Emperor for customer in USA
Net weight (2.2 lb = 1 kg) 0.180 kg / 0 lb 6.3 oz (0.396 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.



All listed radios etc. from Emperor; Hong Kong
Here you find 10 models, 9 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
