IC90

IC90; Dreamland (ID = 1101388) Radio IC90; Dreamland (ID = 1101389) Radio
IC90; Dreamland (ID = 1664693) Radio IC90; Dreamland (ID = 1664695) Radio
IC90; Dreamland (ID = 1664696) Radio IC90; Dreamland (ID = 1664697) Radio
IC90; Dreamland (ID = 1664698) Radio
Use red slider bar for more.
IC90; Dreamland (ID = 1101388) Radio
Dreamland: IC90 [Radio] ID = 1101388 800x551
Select picture or schematic to display from thumbnails on the right and click for download.
For model IC90, Dreamland Electronics Manufactory; Hong Kong:
Ebay user super-bravo-top 220889447405

Country:  Hong Kong
Manufacturer / Brand:  Dreamland Electronics Manufactory; Hong Kong
Year: 1990 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5:
Main principle Superheterodyne (common)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: IC90 - Dreamland Electronics
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 105 x 70 x 36 mm / 4.1 x 2.8 x 1.4 inch
Notes

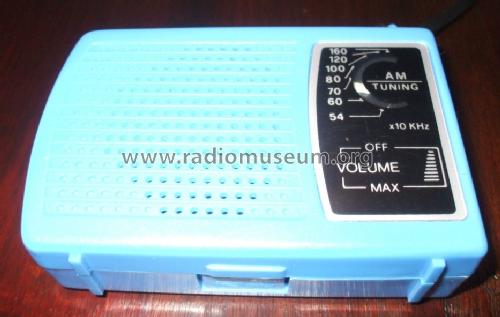

Transistor radio IC90 with carrying strap. Various colors.

See also models International IC90, Tectron IC90 and Lloytron AM Pocket Radio.

Made in China.

Net weight (2.2 lb = 1 kg) 0.120 kg / 0 lb 4.2 oz (0.264 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.



All listed radios etc. from Dreamland Electronics Manufactory; Hong Kong
Here you find 47 models, 47 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
