5 7S7

5; Driva; Schaarbeek (ID = 1984942) Radio 5; Driva; Schaarbeek (ID = 1984943) Radio
5; Driva; Schaarbeek (ID = 1984944) Radio 5; Driva; Schaarbeek (ID = 1984945) Radio
5; Driva; Schaarbeek (ID = 1984946) Radio
Use red slider bar for more.

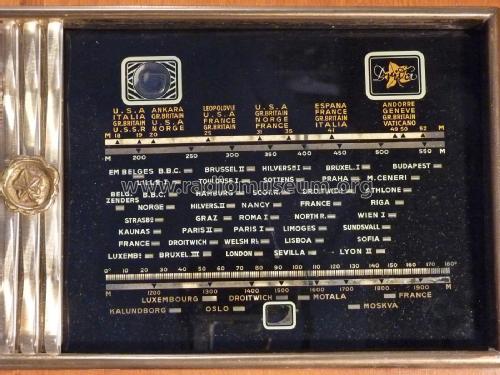

5; Driva; Schaarbeek (ID = 1984942) Radio
Driva; Schaarbeek: 5 [Radio] ID = 1984942 1400x818
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5 7S7, Driva; Schaarbeek:
Courtesy by Lode Mestdagh (B).

Country:  Belgium
Manufacturer / Brand:  Driva; Schaarbeek
Year: 1949 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 7S7 7A7 7B6 7C5 EM34 5Y3
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 145; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 5 [7S7] - Driva; Schaarbeek
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 345 x 250 mm / 23.6 x 13.6 x 9.8 inch

Model page created by Gidi Verheijen. See "Data change" for further contributors.



All listed radios etc. from Driva; Schaarbeek
Here you find 5 models, 5 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
