Portable DAB/FM Radio DAB4 DPR199Q
Dual, DGC GmbH; Landsberg am Lech
- Country
- Germany
- Manufacturer / Brand
- Dual, DGC GmbH; Landsberg am Lech
- Year
- 2011
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 277164
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- DSP, Digital Signal Processor
- Wave bands
- DAB and FM, perhaps with Streaming [DABFM]
- Power type and voltage
- Batteries / addl. power jack / Bat.:6x1,5; Ext..7,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Portable DAB/FM Radio DAB4 [DPR199Q] - Dual, DGC GmbH; Landsberg am
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 200 x 115 x 45 mm / 7.9 x 4.5 x 1.8 inch
- Notes
-
DAB und DAB+ 174,928 - 239,200 MHz. UKW 87,5 - 108 MHz.
Senderspeicher: 10 DAB, 10 UKW.
Made in China for DGC GmbH, Graf-Zeppelin-Str. 7, 86899 Landsberg/Germany
Kopfhörer Buchse 3,5mm.
Gemeinsame Teleskopantenne für UKW und DAB.
Anbei ext. Netzgerät 7,5 V DC 500mA

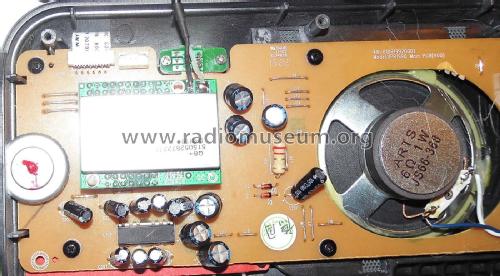

Veränderte Hauptplattine, anderes Empfangs- und DSP-Modul Qantek Q8
SW-Version: DPR199G+ V1.24
Leistungsaufnahme über mitgeliefertes Netzgerät und max.Lautstärke bei DAB 2,3VA LF0,47
- Net weight (2.2 lb = 1 kg)
- 0.410 kg / 0 lb 14.4 oz (0.903 lb)
- Literature/Schematics (1)
- -- Original prospect or advert
- Author
- Model page created by a member from D. See "Data change" for further contributors.
