• Country
• France

• Manufacturer / Brand
• Ducastel Frères (DAHG); Clichy, Paris

• Year
• 1938 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80406

• • Brand: DAHG

• Number of Tubes
• 6

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6F6G EM1 5Y4G

• Main principle
• Superheterodyne (common); 1 AF stage(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

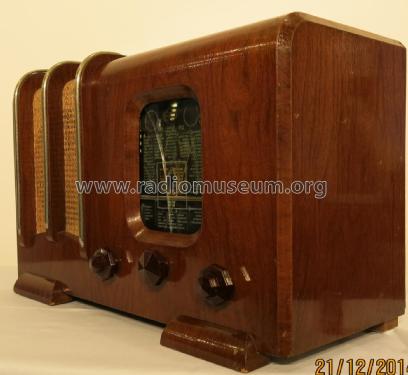

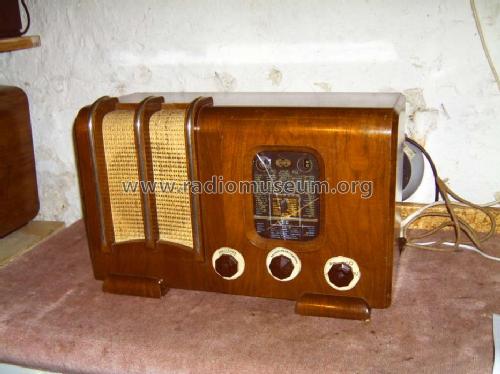

• Model: 492 - Ducastel Frères DAHG; Clichy,

• Shape
• Tablemodel, low profile (big size).

• Notes
• Anschluß für Grammophon, Flutlichtskala. Klangfarberegler und Ein-Aus-Schalter kombiniert.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Author
• Model page created by Olaf Pietrucha. See "Data change" for further contributors.
