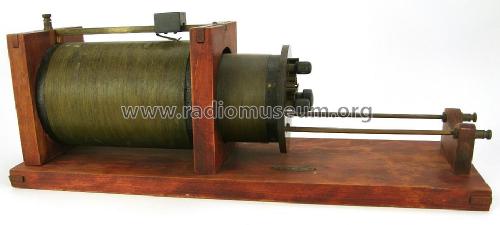

"Arlington" Type B Receiving Transformer No. 1092 Loose coupler

Duck Co., J.J. and William B.; Toledo, OH

  • Year
  • 1916–1919
  • Category
  • Radio module pre 1926 (not a part, not a key)
  • Radiomuseum.org ID
  • 202069

 Technical Specifications

  • Main principle
  • Tuner pre 1926 (not a wave trap)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: "Arlington" Type B Receiving Transformer No. 1092 [Loose coupler] - Duck Co., J.J. and William B.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 16.5 x 0 x 5.25 inch / 419 x 0 x 133 mm
  • Notes
  • The William Duck "Arlington" Type B Receiving Transformer was designed to receive the wireless stations up to 3,000 meters without a loading coil. This transformer is slightly smaller then the Duck No. A1091 Arlington Receiving transformer but will still tune in the big wireless stations, Key West, Arlington and Sayville.
  • Price in first year of sale
  • 7.00 $
  • Literature/Schematics (1)
  • 1916 William B. Duck Catalog No. 11 page 50
  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.
