D2724 1948

D2724; Ducretet -Thomson; (ID = 1324859) Radio

D2724; Ducretet -Thomson; (ID = 1324861) Radio

D2724; Ducretet -Thomson; (ID = 1324863) Radio

D2724; Ducretet -Thomson; (ID = 1324864) Radio

D2724; Ducretet -Thomson; (ID = 1324850) Radio

D2724; Ducretet -Thomson; (ID = 1324851) Radio

D2724; Ducretet -Thomson; (ID = 1324854) Radio

D2724; Ducretet -Thomson; (ID = 1324860) Radio

D2724; Ducretet -Thomson; (ID = 1324862) Radio
D2724; Ducretet -Thomson; (ID = 242697) Radio D2724; Ducretet -Thomson; (ID = 1694832) Radio
D2724; Ducretet -Thomson; (ID = 1694833) Radio
Use red slider bar for more.
D2724; Ducretet -Thomson; (ID = 242697) Radio
Ducretet -Thomson;: D2724 [Radio] ID = 242697 933x697

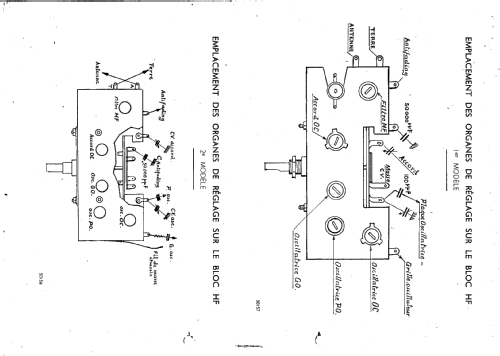

Select picture or schematic to display from thumbnails on the right and click for download.
For model D2724 1948, Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

Country:  France
Manufacturer / Brand:  Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris
alternative name

SED
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6E8 6M7 6Q7 25L6 25Z6
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 120; 140; 200; 240 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: D2724 [1948] - Ducretet -Thomson; avant:
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 290 x 190 x 190 mm / 11.4 x 7.5 x 7.5 inch
Notes

Colours: chestnut, ivory.

See also model D2724 variant 1949.

Net weight (2.2 lb = 1 kg) 4.3 kg / 9 lb 7.5 oz (9.471 lb)
Source of data Le grand livre de la TSF

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris
Here you find 631 models, 484 with images and 278 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
