D737A (D737)

D737A ; Ducretet -Thomson; (ID = 361686) Radio

D737A ; Ducretet -Thomson; (ID = 361687) Radio
D737A ; Ducretet -Thomson; (ID = 1197361) Radio D737A ; Ducretet -Thomson; (ID = 1197362) Radio
D737A ; Ducretet -Thomson; (ID = 1197363) Radio D737A ; Ducretet -Thomson; (ID = 1468345) Radio
D737A ; Ducretet -Thomson; (ID = 1468346) Radio D737A ; Ducretet -Thomson; (ID = 1468347) Radio
D737A ; Ducretet -Thomson; (ID = 1608018) Radio D737A ; Ducretet -Thomson; (ID = 1608020) Radio
Use red slider bar for more.
D737A ; Ducretet -Thomson; (ID = 1197361) Radio
Ducretet -Thomson;: D737A [Radio] ID = 1197361 500x377
Select picture or schematic to display from thumbnails on the right and click for download.
For model D737A (D737), Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris:
radio_europe 251020139725

Country:  France
Manufacturer / Brand:  Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris
alternative name

SED
Year: 1947–1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6E8 6M7 6H8 6V6G 6AF7 5Y3GB
Main principle Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: D737A - Ducretet -Thomson; avant:
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 360 x 330 mm / 22 x 14.2 x 13 inch
Notes

Récepteur semi-professionnel. 5 gammes d'ondes dont 3 bandes OC semi-étalées.

Coffret bakélite brun.

Existe aussi en version tropicalisée comme D737T et en ébenisterie comme modèles D737B, D837 et D937.

Net weight (2.2 lb = 1 kg) 16.5 kg / 36 lb 5.5 oz (36.344 lb)
External source of data Serge Laffont/Martin Renoth
Mentioned in -- Original prospect or advert (Catalogue '50 ans d'experience en TSF', 1949)

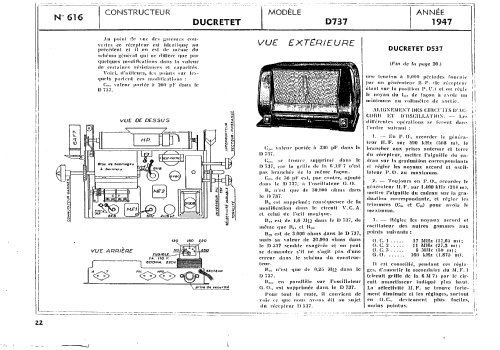

Literature/Schematics (1) Le grand livre de la TSF (Doctsf Ref 601)
