• Country
• France

• Manufacturer / Brand
• Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 99199

• • alternative name: SED

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UBC81 UF89 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 480 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 145; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

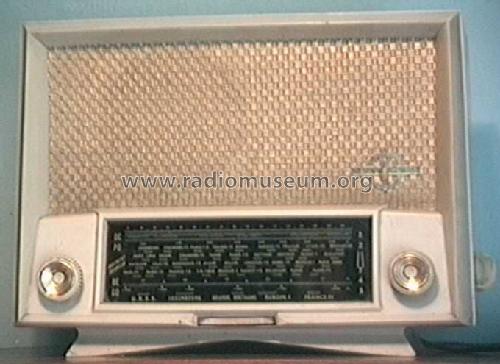

• Model: L924 - Ducretet -Thomson; avant:

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 337 x 250 x 175 mm / 13.3 x 9.8 x 6.9 inch

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by John Koster. See "Data change" for further contributors.
