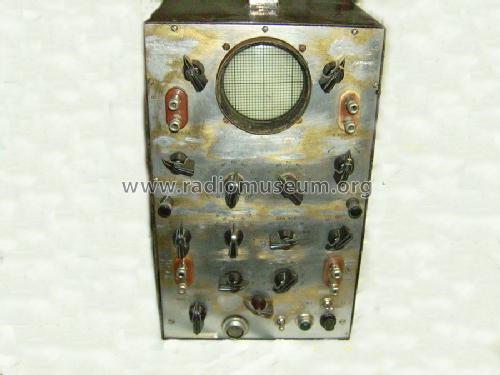

Cathode Ray Oscillograph 224

DuMont Labs, Allen B., Inc.

  • Year
  • 1945/1946 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 173535
    • alternative name: Dumont Television & Radio

 Technical Specifications

  • Number of Tubes
  • 13
  • Valves / Tubes
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Cathode Ray Oscillograph 224 - DuMont Labs, Allen B., Inc.
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 210 x 345 x 390 mm / 8.3 x 13.6 x 15.4 inch
  • Net weight (2.2 lb = 1 kg)
  • 20 kg / 44 lb 0.8 oz (44.053 lb)
  • Author
  • Model page created by Dieter Wiedemann. See "Data change" for further contributors.
