DC-Oszilloscope 401 A 958 E

DC-Oszilloscope 401 A 958 E; DuMont Labs, Allen B (ID = 809594) Equipment DC-Oszilloscope 401 A 958 E; DuMont Labs, Allen B (ID = 809082) Equipment

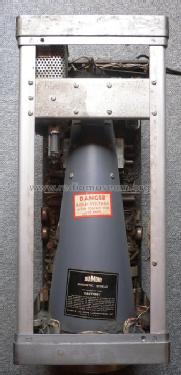

DC-Oszilloscope 401 A 958 E; DuMont Labs, Allen B (ID = 809093) Equipment DC-Oszilloscope 401 A 958 E; DuMont Labs, Allen B (ID = 809095) Equipment

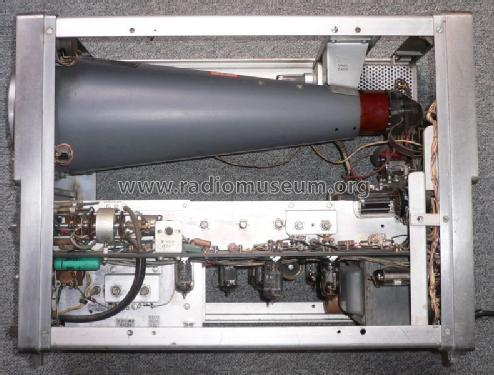

DC-Oszilloscope 401 A 958 E; DuMont Labs, Allen B (ID = 809096) Equipment DC-Oszilloscope 401 A 958 E; DuMont Labs, Allen B (ID = 809294) Equipment
Use red slider bar for more.
DC-Oszilloscope 401 A 958 E; DuMont Labs, Allen B (ID = 809594) Equipment
DuMont Labs, Allen B: DC-Oszilloscope 401 A 958 E [Equipment] ID = 809594 503x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model DC-Oszilloscope 401 A 958 E, DuMont Labs, Allen B., Inc.

Country:  United States of America (USA)
Manufacturer / Brand:  DuMont Labs, Allen B., Inc.
alternative name

Dumont Television & Radio
Year: 1965 ?? Category: Service- or Lab Equipment
Valves / Tubes 22: 12AU7 6BK7 6U8 6AU6 6BX7 6CL6 6AL5 6AQ5 5AR4 1X2A 5642 5ADP1
schematic requested
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 115; 230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: DC-Oszilloscope 401 A 958 E - DuMont Labs, Allen B., Inc.
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 222 x 383 x 518 mm / 8.7 x 15.1 x 20.4 inch
Net weight (2.2 lb = 1 kg) 22 kg / 48 lb 7.3 oz (48.458 lb)
Source of data - - Data from my own collection

Model page created by Peter Gruschka. See "Data change" for further contributors.
