D'Orsay Ch= RA-343

DuMont Labs, Allen B., Inc.

  • Year
  • 1956 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 298907
    • alternative name: Dumont Television & Radio

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 24
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: D'Orsay Ch= RA-343 - DuMont Labs, Allen B., Inc.
  • Shape
  • Console, Highboy (legs > 50 %).
  • Notes

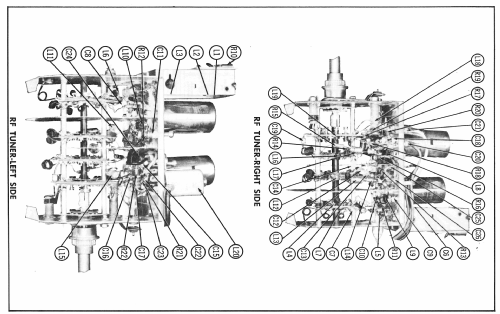

  • The Dumont model D'Orsay is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis RA-343 ,VHF Tuner 89013751, UHF Tuner 69013771 and picture tube 24DP4A.

  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
