For model Dumont Ch= RA-370, DuMont Labs, Allen B., Inc.:

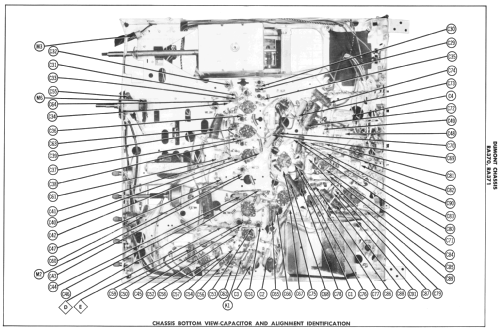

Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  DuMont Labs, Allen B., Inc.
alternative name

Dumont Television & Radio
Year: 1957 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: 6AF4A 6BK7A 6AT8 6CF6 6CF6 6CB6 12BY7A 6AU6 6T8 6AQ5 6CS6 6CN7 6CM7 12AU7 6CU6 6AX4GT 1B3GT 5U4GB 21ATP4A
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Dumont Ch= RA-370 - DuMont Labs, Allen B., Inc.
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

Dumont Chassis RA370 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with VHF- tuner 89014061, UHF- tuner 89014081 and picture tube 21ATP4A.

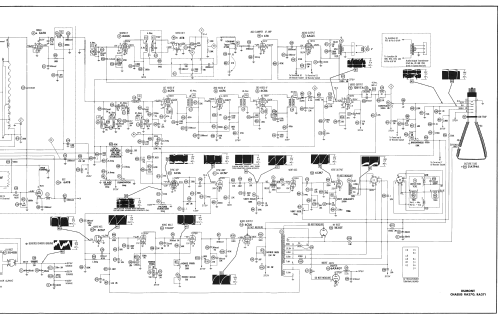

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 364 Folder 3 dated 7-57)

Model page created by Dirk Taekels. See "Data change" for further contributors.
