Clinton RA-164

• Country
• United States of America (USA)

• Manufacturer / Brand
• DuMont Labs, Allen B., Inc.

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 269938

• • alternative name: Dumont Television & Radio

• Picture
• Schematics

Previous Next

Previous Next

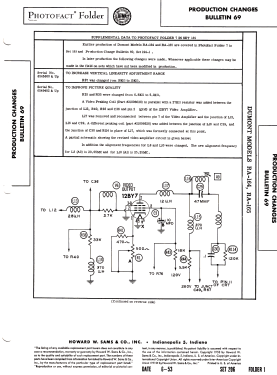

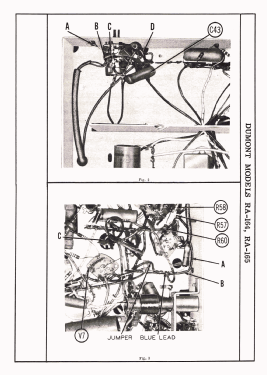

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6BQ7 6J6 6CB6 6CB6 6CB6 12BY7 6AU6 6AU6 6AU6 6AT6 6W6GT 6BE6 12AT7 6S4 6AL5 6SN7GT 6BQ6GT 6W4GT 1B3GT 5U4G 21FP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Clinton RA-164 - DuMont Labs, Allen B., Inc.

• Shape
• Console with any shape - in general

• Notes

• Dumont model RA-164 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 21010781 and picture tube 21FP4A.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 189, folder 7 dated 12-52)

• Literature/Schematics (2)
• - - Manufacturers Literature

• Literature/Schematics (3)
• Photofact Folder, Howard W. SAMS (Set 194, folder 1, dated 2-53)

• Author
• Model page created by Jorge Mochkovsky. See "Data change" for further contributors.
