Minimulti MM 2001

Minimulti MM 2001; Dunamenti MGTSZ; Göd (ID = 1723591) Equipment Minimulti MM 2001; Dunamenti MGTSZ; Göd (ID = 1723592) Equipment
Use red slider bar for more.
Minimulti MM 2001; Dunamenti MGTSZ; Göd (ID = 1723591) Equipment
Dunamenti MGTSZ; Göd: Minimulti MM 2001 [Equipment] ID = 1723591 449x972
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minimulti MM 2001, Dunamenti MGTSZ; Göd:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Dunamenti MGTSZ; Göd
Year: 1980 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Dry Batteries / 1× 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Minimulti MM 2001 - Dunamenti MGTSZ; Göd
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 85 x 195 x 23 mm / 3.3 x 7.7 x 0.9 inch
Notes

R: 2 kΩ...20 MΩ; I (=/~): 2 mA...2 A; U=: 200 mV...500 V; U~: 200 mV...1000 V.

Net weight (2.2 lb = 1 kg) 0.275 kg / 0 lb 9.7 oz (0.606 lb)

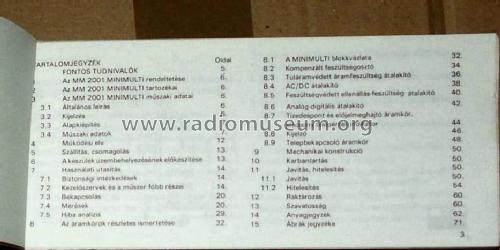

Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
